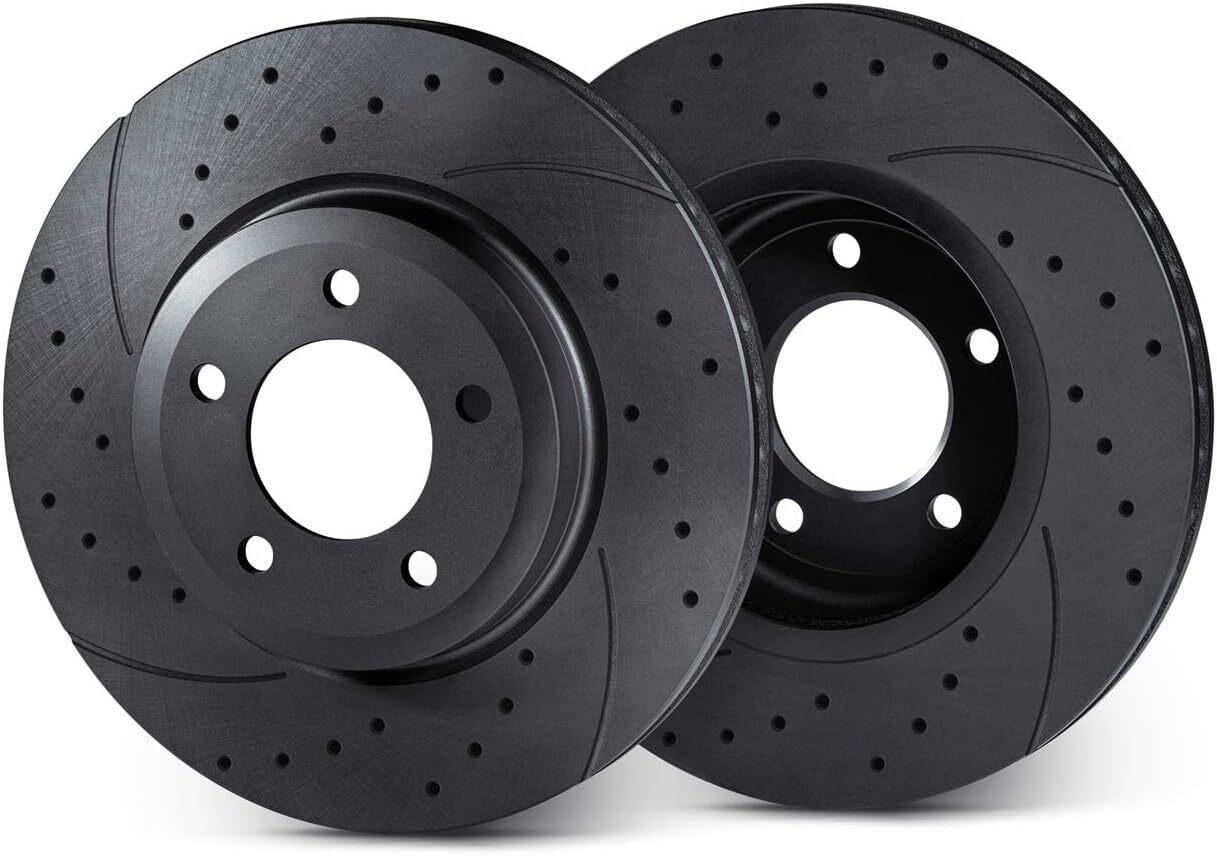

Brake discs front - grooved and drilled - For Dacia Logan

Rotinger T5 combines a grooved and drilled braking surface with a sportier look behind the wheels. It is a suitable option when you want a more performance-focused appearance at the next disc replacement. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. The price is per pair.

Technical information

• Version: T5, slotted and drilled
• Position: front
• Diameter: 259,8 mm
• Height: 44 mm
• Thickness: 22 mm
• Minimum thickness: 19,8 mm
• Supplier dimension THREAD SIZE: 13,5 mm
• Inner diameter: 124,3 mm
• Centering diameter: 61 mm

Check before ordering

Model name and model year are not always sufficient to select the correct brake disc. Compare dimensions and reference numbers and check the conditions for your exact vehicle version. Date ranges below are shown as year-month.

Fits the following versions

LOGAN MCV (KS_)
1.6 MPI 85; 1598 cm³; 62 kW; 84 hk; 2010-05–?
1.5 dCi (KS04); 1461 cm³; 55 kW; 75 hk; 2010-05–2013-06
1.5 dCi (KS04); 1461 cm³; 65 kW; 88 hk; 2010-05–?
1.6 16V Hi-Flex; 1598 cm³; 77 kW; 105 hk; 2009-11–?
1.4; 1390 cm³; 55 kW; 75 hk; 2007-02–?
1.6 (KS0B, KS0D, KS0F); 1598 cm³; 64 kW; 87 hk; 2007-02–2013-06
1.6 16V (KS0L, KS0M, KS0P, KS1S); 1598 cm³; 77 kW; 105 hk; 2007-02–?
1.5 dCi (KS0K); 1461 cm³; 50 kW; 68 hk; 2007-02–?
1.5 dCi (KS0W); 1461 cm³; 63 kW; 86 hk; 2007-09–2012-12; construction year to 200811;
1.6 Bifuel; 1598 cm³; 64 kW; 87 hk; 2008-11–?
1.6 Bifuel; 1598 cm³; 62 kW; 84 hk; 2010-05–?

LOGAN EXPRESS (FS_)
1.5 dCi; 1461 cm³; 55 kW; 75 hk; 2010-05–?
1.5 dCi; 1461 cm³; 65 kW; 88 hk; 2010-05–?
1.6 MPI 85; 1598 cm³; 62 kW; 84 hk; 2010-05–?
1.4; 1390 cm³; 55 kW; 75 hk; 2009-03–?
1.6; 1598 cm³; 64 kW; 87 hk; 2009-03–?
1.5 dCi (FS0K); 1461 cm³; 50 kW; 68 hk; 2009-03–?
1.5 dCi (FS0W); 1461 cm³; 63 kW; 86 hk; 2009-03–?

LOGAN pick-up (US_)
1.6 MPI 85; 1598 cm³; 62 kW; 84 hk; 2010-05–?
1.5 dCi; 1461 cm³; 55 kW; 75 hk; 2010-05–?
1.5 dCi; 1461 cm³; 65 kW; 88 hk; 2010-05–?
1.6 Bifuel; 1598 cm³; 62 kW; 84 hk; 2010-05–?
1.6; 1598 cm³; 64 kW; 87 hk; 2008-03–?
1.5 dCi (US0K); 1461 cm³; 50 kW; 68 hk; 2008-03–?
1.5 dCi (US0W); 1461 cm³; 63 kW; 86 hk; 2008-03–?

LOGAN (LS_)
1.6 16V (LS09, LS0L, LS0M, LS0P, LS0V, LS18, LS1S, LS1V,...; 1598 cm³; 77 kW; 105 hk; 2006-02–?

Reference numbers

DACIA: 40 20 649 11R, 40 20 684 66R, 77 01 207 795, 8671016813

DELPHI: BG3762, BG3762C, BG3762T

OE: 7701207795, 40206 AX600, 40206 AX602, 40206 AX603, 40206 EE320, 4020600Q1M, 402064AA1A, 40206AX60A, D0206AX60MRV, 40 20 649 11R, 40 20 6AX 602, 402068466R, 40206AX600, 77 01 207 795, 8671016813, 40 20 684 66R, 402063AW0A

TEXTAR: 92119200, 92119203, 98200119201

TRW: DF4267, DF4364
