Brake discs front - grooved and drilled - For Fiat

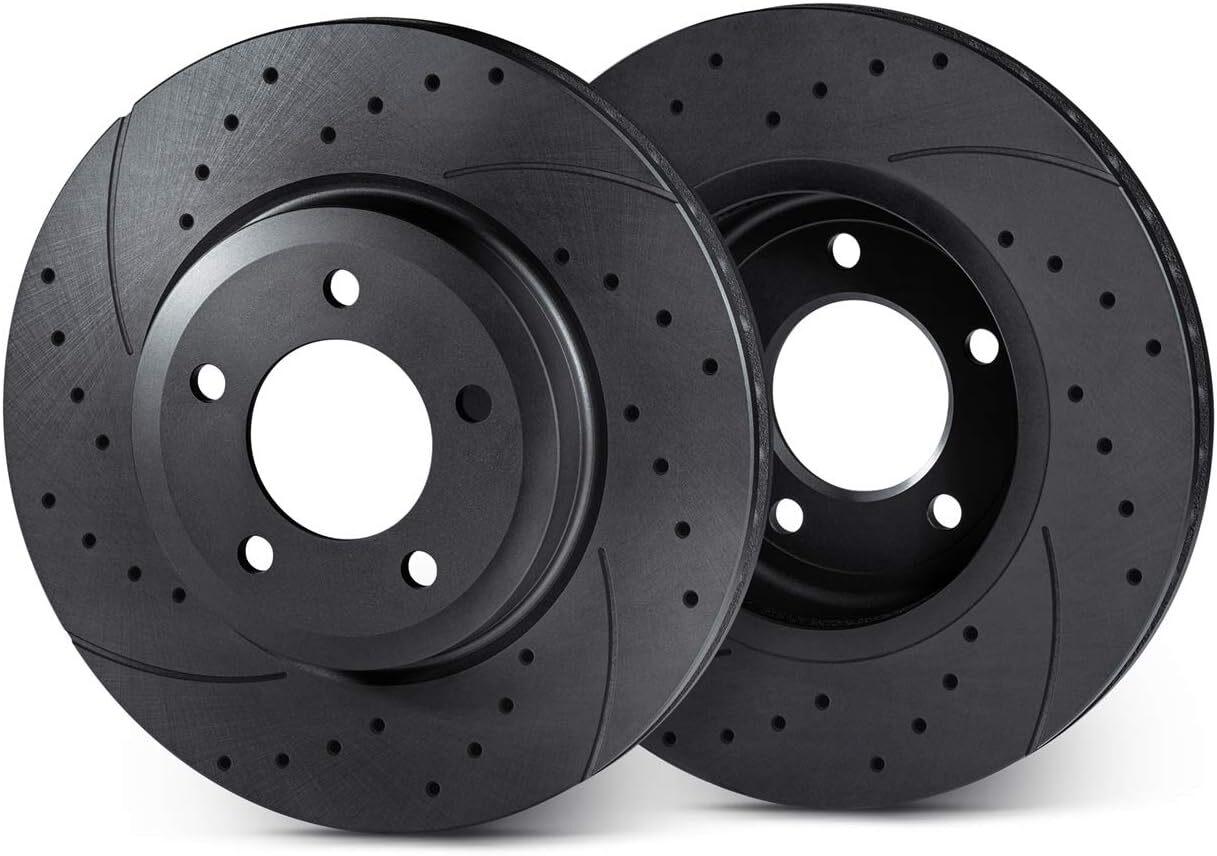

Rotinger T5 combines a grooved and drilled braking surface with a sportier look behind the wheels. It is a suitable option when you want a more performance-focused appearance at the next disc replacement. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. The price is per pair.

Technical information

• Version: T5, slotted and drilled
• Position: front
• Diameter: 284 mm
• Height: 39,4 mm
• Thickness: 22 mm
• Minimum thickness: 20,2 mm
• Supplier dimension THREAD SIZE: 13,3 mm
• Inner diameter: 127 mm
• Centering diameter: 59,1 mm

Check before ordering

Model name and model year are not always sufficient to select the correct brake disc. Compare dimensions and reference numbers and check the conditions for your exact vehicle version. Date ranges below are shown as year-month.

Fits the following versions

TIPO (160_)
2.0 i.e. 16V Sport (160.EF); 1995 cm³; 102 kW; 139 hk; 1993-03–1995-04
2.0 16V (160.AV); 1995 cm³; 107 kW; 146 hk; 1991-07–1995-04; construction year to 199210; construction year from 199111;

COUPE (175_)
2.0 16V; 1995 cm³; 102 kW; 139 hk; 1993-11–1996-08
1.8 16V; 1747 cm³; 96 kW; 131 hk; 1996-03–2000-08
2.0 20V (175AXC1A); 1998 cm³; 108 kW; 147 hk; 1996-08–1998-09
2.0 20V; 1998 cm³; 113 kW; 154 hk; 1998-04–2000-08

MULTIPLA (186_)
1.6 100 16V (186AXA1A); 1581 cm³; 76 kW; 103 hk; 1999-04–2010-06
1.9 JTD 105 (186AXB1A); 1910 cm³; 77 kW; 105 hk; 1999-04–2010-06
1.6 Blupower (186AMA1A); 1581 cm³; 70 kW; 95 hk; 1999-04–2004-09
1.6 16V Bipower (186AMB1A); 1581 cm³; 76 kW; 103 hk; 1999-04–2010-06
1.9 JTD 110; 1910 cm³; 81 kW; 110 hk; 2001-03–2002-07
1.6 16V Bipower (186AXC1A); 1596 cm³; 76 kW; 103 hk; 2001-10–2010-06
1.9 JTD 115; 1910 cm³; 85 kW; 115 hk; 2002-07–2010-06
1.6 16V (186AGB1A); 1596 cm³; 70 kW; 95 hk; 2002-04–2010-06; construction year to 200508;
1.9 JTD (186AXE1A); 1910 cm³; 88 kW; 120 hk; 2002-04–2010-06
1.6 (186AXC1A, 186BMC1A, 186BXC1A); 1596 cm³; 76 kW; 103 hk; 2000-09–2010-06
1.6 Natural Power (186AGB1A05); 1596 cm³; 77 kW; 105 hk; 2008-11–2010-06

PUNTO (188_)
1.8 130 HGT (188.738, .718); 1747 cm³; 96 kW; 130 hk; 1999-09–2012-03; construction year from 200310;
1.9 JTD; 1910 cm³; 74 kW; 101 hk; 2003-06–2012-03

MULTIPLA VAN (186_)
1.9 JTD (186AXG1A, 186BXG1A); 1910 cm³; 88 kW; 120 hk; 2002-04–2010-06
Bipower; 1596 cm³; 76 kW; 103 hk; 2001-10–2010-06
1.6 (186AXC1A, 186BMC1A, 186BXC1A); 1596 cm³; 76 kW; 103 hk; 2000-09–2010-06

Reference numbers

DELPHI: BG2617, BG617

FIAT: 0000060811890, 0000060812067, 46403958, 46427947, 46427949, 6001073196, 60811890, 60812067, 60812137, 71738906, 71770942, 71772252, 82462136

OE: 0060812067, 46403958, 46427947, 46427949, 6001073196, 60811878, 60811890, 60812067, 71738906, 71770942, 71772252, 82462136, 0000060811890, 0000060812067, 60812137

TEXTAR: 92055200, 92055203, 92069605, 98200055201

TRW: DF1757, DF2734
