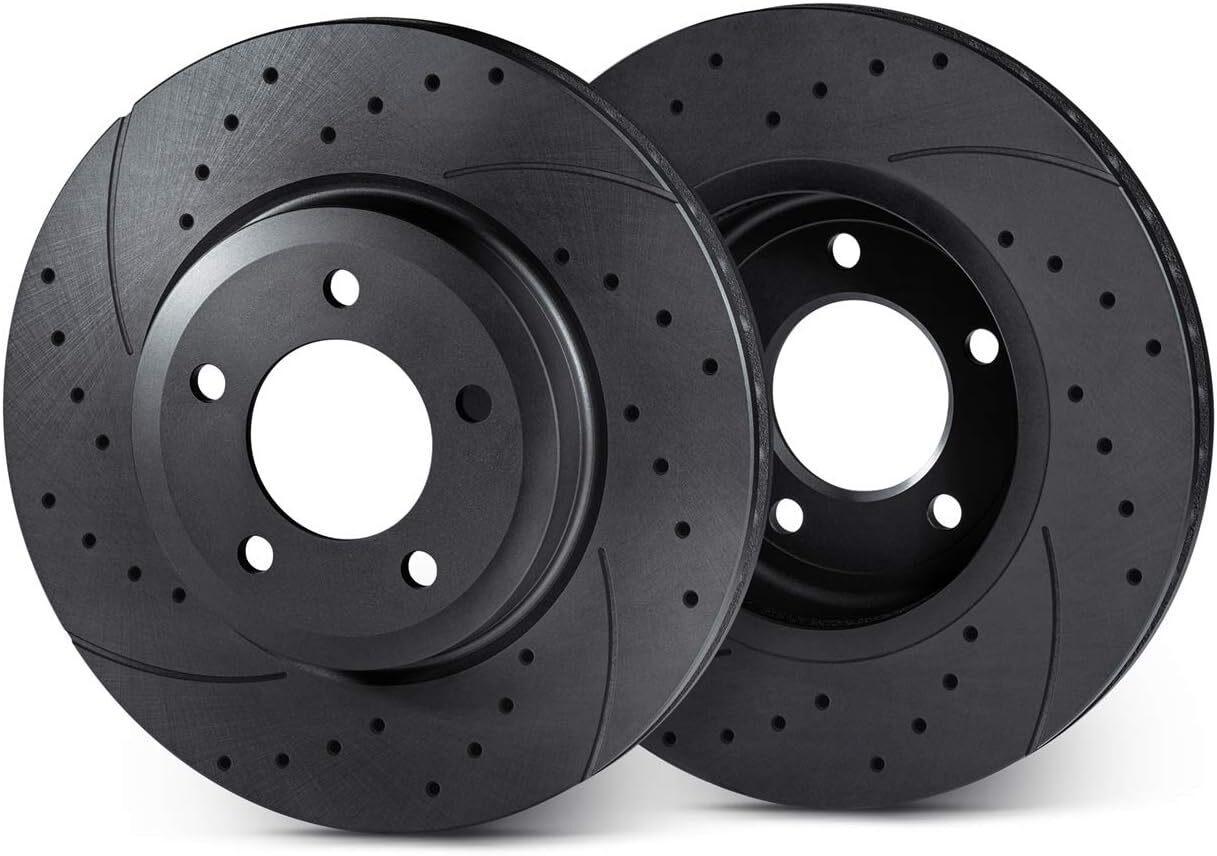

Brake discs front - grooved and drilled - For Fiat

Rotinger T5 combines a grooved and drilled braking surface with a sportier look behind the wheels. It is a suitable option when you want a more performance-focused appearance at the next disc replacement. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. The price is per pair.

Technical information

• Version: T5, slotted and drilled
• Position: front
• Diameter: 285 mm
• Height: 43,6 mm
• Thickness: 28 mm
• Minimum thickness: 26 mm
• Supplier dimension THREAD SIZE: 16,6 mm
• Inner diameter: 127 mm
• Centering diameter: 59 mm

Check before ordering

Model name and model year are not always sufficient to select the correct brake disc. Compare dimensions and reference numbers and check the conditions for your exact vehicle version. Date ranges below are shown as year-month.

Fits the following versions

SCUDO Autobus (220_)
1.9 TD Eco; 1905 cm³; 66 kW; 90 hk; 1996-02–2006-12; construction year from 200310;
2.0 JTD 16V; 1997 cm³; 80 kW; 109 hk; 1999-05–2006-12; construction year from 200310;
2.0 JTD; 1997 cm³; 80 kW; 109 hk; 1999-12–2006-12; construction year from 200310;
2.0 16V; 1997 cm³; 100 kW; 136 hk; 2000-06–2006-12; construction year from 200310;
2.0 JTD; 1997 cm³; 69 kW; 94 hk; 2004-01–2006-12; construction year to 200610;

SCUDO Furgon (220_)
2.0 JTD 16V; 1997 cm³; 80 kW; 109 hk; 1999-05–2006-12; construction year from 200501;
2.0 JTD; 1997 cm³; 69 kW; 94 hk; 1999-10–2006-12

ULYSSE (220_)
2.0 16V (220AQ5); 1997 cm³; 100 kW; 136 hk; 2000-09–2002-08; construction year from 200206;

ULYSSE (179_)
2.0 (179BXA11, 179BXA1A); 1997 cm³; 100 kW; 136 hk; 2002-08–2011-06
3.0; 2946 cm³; 150 kW; 204 hk; 2002-08–2011-06; construction year to 200509;
2.0 JTD; 1997 cm³; 80 kW; 109 hk; 2002-08–2006-08
2.2 JTD; 2179 cm³; 94 kW; 128 hk; 2002-08–2006-08
2.0 JTD; 1997 cm³; 79 kW; 107 hk; 2003-05–2006-08
2.0 D Multijet; 1997 cm³; 88 kW; 120 hk; 2006-05–2011-06
2.0 D Multijet; 1997 cm³; 100 kW; 136 hk; 2006-05–2011-06

Reference numbers

DELPHI: BG3740, BG3740C

FIAT: 1325772080, 1331301080, 1340179080, 1340193080, 4246P2

OE: 16 063 092 80, 1618862880, 4246 P2, 4249 H7, E169146, 1325772080, 1331301080, 1340179080, 1340193080, 4246P2, 10008343, 10023289, SDB000960, 4246 P1

TEXTAR: 92115000, 92115003, 98200115001

TRW: DF4257, DF4527
