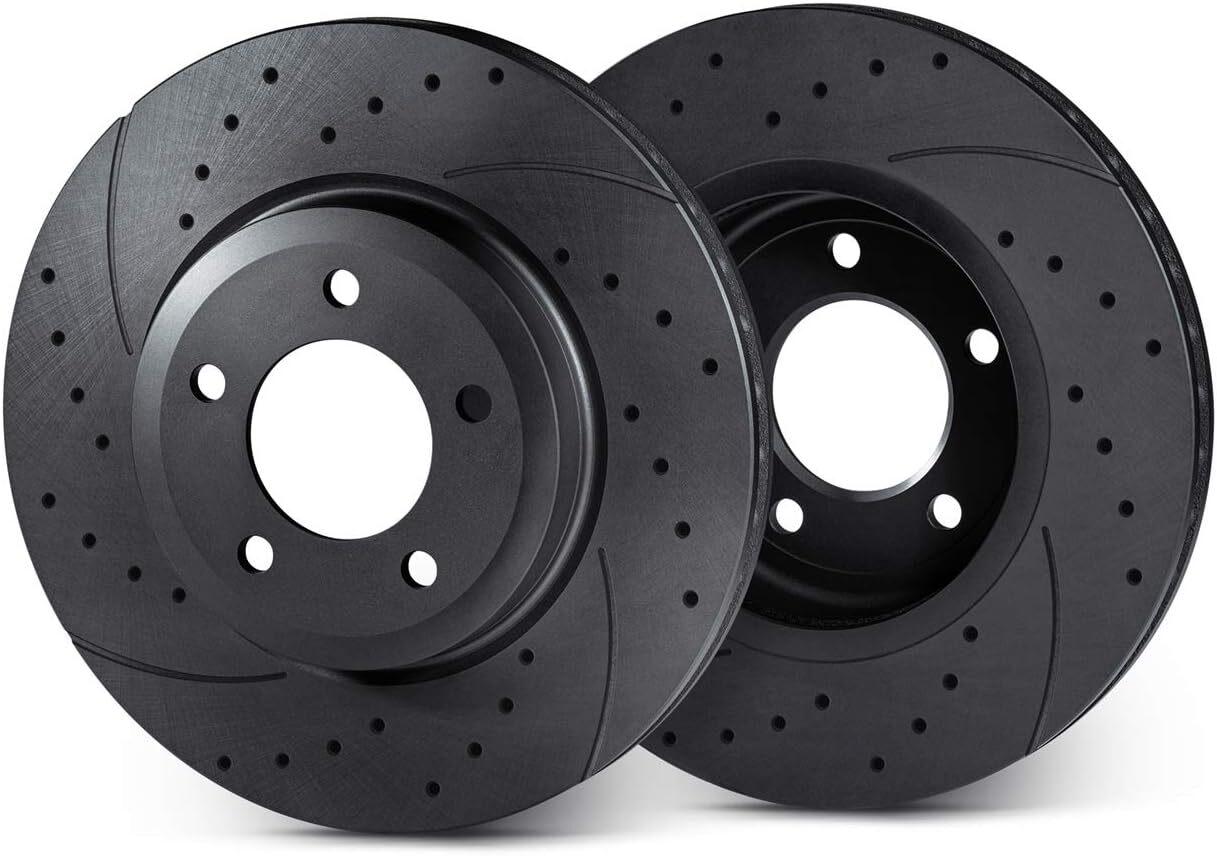

Brake discs front - grooved and drilled - For Ford

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: front
• Diameter: 239,5 mm
• Height: 58,2 mm
• Thickness: 10 mm
• Minimum thickness: 8,7 mm
• Supplier dimension THREAD SIZE: 13,7 mm
• Inner diameter: 136 mm
• Centring diameter: 63,5 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

Escort Iii (Gaa)
1.1; 1117 cm³; 37 kW; 50 hp; 1983-08–1985-12
1.1; 1117 cm³; 40 kW; 55 hp; 1980-09–1983-08
1.1; 1117 cm³; 43 kW; 59 hp; 1980-09–1983-08
1.3; 1296 cm³; 51 kW; 69 hp; 1980-09–1985-12
1.6 D; 1608 cm³; 40 kW; 54 hp; 1984-02–1985-12

Escort Iii Express (Ava)
1.1; 1117 cm³; 37 kW; 50 hp; 1981-03–1986-02
1.3; 1296 cm³; 51 kW; 69 hp; 1981-03–1986-02
1.6 D; 1608 cm³; 40 kW; 54 hp; 1984-02–1986-02
1.6; 1597 cm³; 61 kW; 84 hp; 1981-03–1986-02

Escort Iii estate (Awa)
1.1; 1117 cm³; 37 kW; 50 hp; 1983-08–1985-12
1.1; 1117 cm³; 40 kW; 54 hp; 1980-09–1983-08
1.3; 1296 cm³; 51 kW; 69 hp; 1981-03–1985-12
1.6 D; 1608 cm³; 40 kW; 54 hp; 1984-02–1985-12
1.6; 1597 cm³; 58 kW; 79 hp; 1980-09–1985-12; Vehicle type: 55

Escort Iii convertible (Ald)
1.3; 1296 cm³; 51 kW; 69 hp; 1983-09–1985-12

Escort IV (Gaf, Awf, Abft)
1.1; 1117 cm³; 37 kW; 50 hp; 1985-12–1990-07
1.3 (GAF); 1297 cm³; 46 kW; 63 hp; 1988-07–1990-10
1.3; 1296 cm³; 51 kW; 69 hp; 1986-11–1988-07
1.3; 1297 cm³; 44 kW; 60 hp; 1986-01–1990-07
1.6 D; 1608 cm³; 40 kW; 54 hp; 1986-01–1989-01

Escort IV Express (Avf)
1.1; 1117 cm³; 37 kW; 50 hp; 1986-05–1990-07
1.3; 1297 cm³; 44 kW; 60 hp; 1986-02–1990-07; Built up to: 1988-08; Vehicle type: 55; Vehicle type: Express 35; Vehicle type: Express 55
1.3; 1297 cm³; 46 kW; 63 hp; 1988-07–1990-07; Built up to: 1988-08; Vehicle type: Express 35; Vehicle type: Express 55
1.6 D; 1608 cm³; 40 kW; 54 hp; 1986-02–1990-07; Built up to: 1988-08; Vehicle type: 35; Vehicle type: Express 35; Vehicle type: Express 55
1.6; 1597 cm³; 60 kW; 81 hp; 1986-02–1990-07

Escort IV estate (Awf, Avf)
1.1; 1117 cm³; 37 kW; 50 hp; 1985-10–1990-09; Built from: 1986-03
1.3; 1296 cm³; 51 kW; 69 hp; 1986-11–1988-07
1.3; 1297 cm³; 44 kW; 60 hp; 1986-01–1990-07; Built up to: 1988-08; Vehicle type: 55
1.6 D; 1608 cm³; 40 kW; 54 hp; 1986-01–1989-01
1.6; 1597 cm³; 58 kW; 79 hp; 1986-01–1990-07; Built up to: 1986-02; Vehicle type: 55

Orion I (Afd)
1.3; 1296 cm³; 51 kW; 69 hp; 1983-07–1986-03
1.6 D; 1608 cm³; 40 kW; 54 hp; 1984-02–1986-03

Orion II (Aff)
1.3; 1296 cm³; 51 kW; 69 hp; 1986-11–1988-07
1.3; 1297 cm³; 44 kW; 60 hp; 1985-12–1990-07; Built from: 1988-08
1.6 D; 1608 cm³; 40 kW; 54 hp; 1985-12–1989-01

Reference numbers

DELPHI: BG2376, BG376

FORD: 1 629 475, 1 629 477, 1644857, 5 022 658, 5 022 947, 5 024 744, 5022648, 6 077 975, 6 137 291, 6 158 203, 6 158 205, 60477975, 6101928, 86AX-1125-SA

TEXTAR: 92023000, 98200023001

TRW: DF1652
