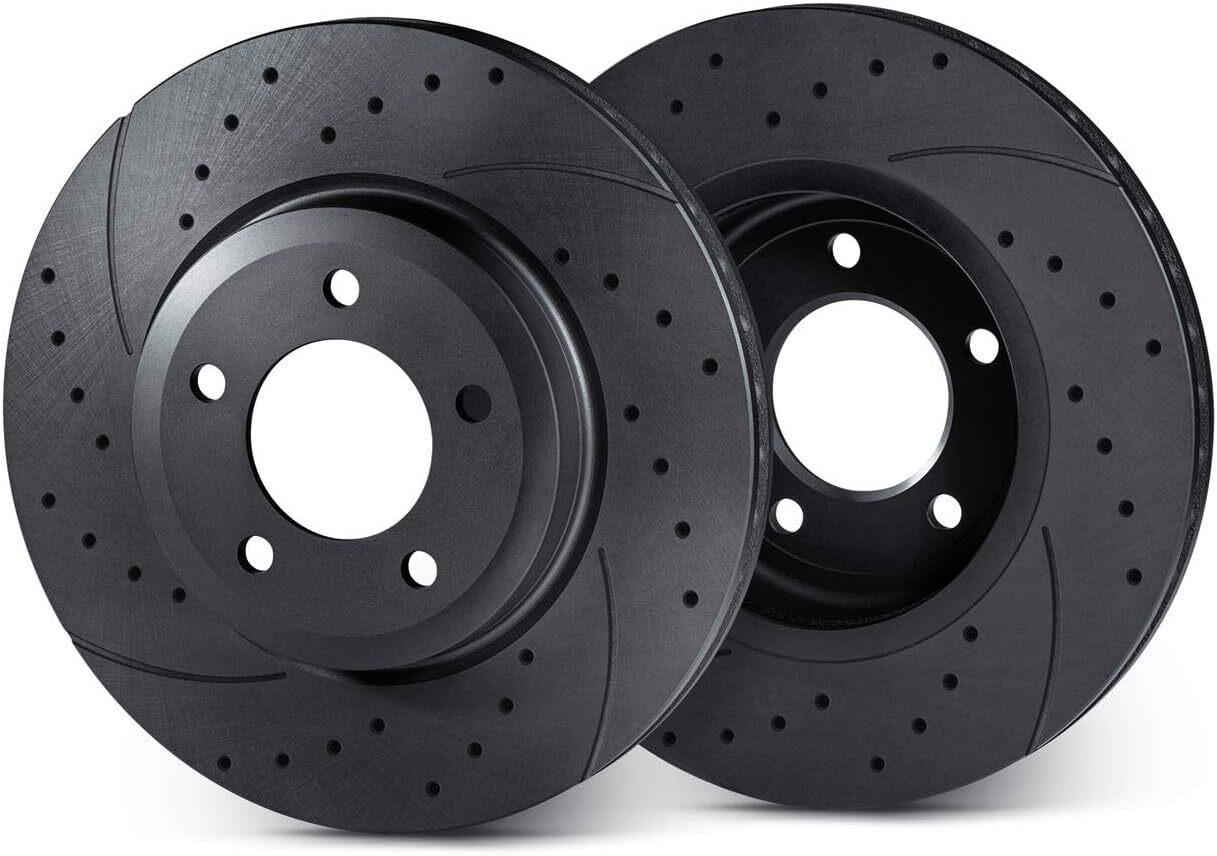

Brake discs rear - grooved and drilled - For Mercedes-Benz

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: rear
• Diameter: 272 mm
• Height: 96,6 mm
• Thickness: 15,9 mm
• Minimum thickness: 14 mm
• Supplier dimension THREAD SIZE: 15 mm
• Inner diameter: 159,5 mm
• Centring diameter: 85 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

KLASA G (W463)
G 320 (463.230, 463.231); 3199 cm³; 155 kW; 211 hp; 1994-09–1997-12
G 55 AMG (463.270, 463.271); 5439 cm³; 373 kW; 507 hp; 2008-08–2012-06; Axle number:741.144
G 300 TD (463.330, 463.331); 2996 cm³; 130 kW; 177 hp; 1996-08–2000-07
G 320 (463.232, 463.233, 463.244, 463.245); 3199 cm³; 158 kW; 215 hp; 1997-07–2004-08
G 500 (463.247, 463.248, 463.249, 463.240, 463.241); 4966 cm³; 218 kW; 296 hp; 1998-04–2015-12
G 55 AMG (463.243, 463.246); 5439 cm³; 260 kW; 354 hp; 1999-04–2008-07; Axle number:741.144
G 350 CDI (463.346); 2987 cm³; 155 kW; 211 hp; 2011-07–2015-08
G 400 CDI (463.332, 463.333); 3996 cm³; 184 kW; 250 hp; 2000-12–2006-07
G 270 CDI (463.322, 463.323); 2685 cm³; 115 kW; 156 hp; 2001-10–2003-07
G 55 AMG (463.270, 463.271); 5439 cm³; 350 kW; 476 hp; 2004-06–2006-07; Axle number:741.144
G 320 CDI (463.343); 2987 cm³; 165 kW; 224 hp; 2006-09–2012-12
G 55 AMG (463.270, 463.271); 5439 cm³; 368 kW; 500 hp; 2006-08–2012-12; Axle number:741.144
G 500 (463.222, 463.236, 463.237, 463.242); 5461 cm³; 285 kW; 388 hp; 2008-05–2015-08
G 350 d (463.348); 2987 cm³; 180 kW; 245 hp; 2015-06–2018-04
G 350 CDI (463.306, 463.340, 463.341, 463.346); 2987 cm³; 165 kW; 224 hp; 2009-06–2011-12

KLASA G (W461)
G 280 CDI (461.304, 461.334, 461.339, 461.344, 461.390); 2987 cm³; 135 kW; 184 hp; 2009-04–?
G 290 TD (461.335, 461.336); 2874 cm³; 88 kW; 120 hp; 1997-07–2001-07
G 270 CDI; 2685 cm³; 115 kW; 156 hp; 2003-01–2006-12

SPRINTER 2-t Autobus (B901, B902)
208 D (901.371, 902.371, 902.372); 2299 cm³; 58 kW; 79 hp; 1995-02–2000-04
212 D (902.471, 902.472); 2874 cm³; 90 kW; 122 hp; 1995-02–2000-04
214 (902.071, 902.072, 902.671, 902.672); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
210 D (902.471, 902.472); 2874 cm³; 75 kW; 102 hp; 1997-03–2000-04
208 CDI (901.671, 902.671, 902.672); 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
211 CDI (902.671, 902.672); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
213 CDI (902.671, 902.672); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
216 CDI (902.671, 902.672); 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
214 NGT (902.072, 902.671, 902.672); 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05

KLASA G Cabrio (W463)
G 300 TD (463.308); 2996 cm³; 130 kW; 177 hp; 1996-09–2000-07
G 320 (463.209, 463.250); 3199 cm³; 158 kW; 215 hp; 1997-11–2004-08
G 350 CDI; 2987 cm³; 155 kW; 211 hp; 2011-07–2015-12
G 400 CDI (463.309); 3996 cm³; 184 kW; 250 hp; 2000-12–2006-07
G 320 CDI (463.303); 2987 cm³; 165 kW; 224 hp; 2006-09–2012-12
G 350 CDI (463.306); 2987 cm³; 165 kW; 224 hp; 2009-06–2011-12

SPRINTER 2-t Furgon (B901, B902)
210 D (901.461, 901.462, 902.461, 902.462); 2874 cm³; 75 kW; 102 hp; 1997-01–2000-04
208 D (901.361, 901.362, 902.361, 902.362); 2299 cm³; 58 kW; 79 hp; 1995-02–2000-04
212 D (901.461, 901.462, 902.461, 902.462); 2874 cm³; 90 kW; 122 hp; 1995-02–2000-04
214 (901.061, 901.062, 901.661, 901.662, 902.061,...; 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
208 D (901.361, 901.362, 902.361, 902.362); 2299 cm³; 60 kW; 82 hp; 1996-10–2000-04
208 CDI (901.661, 901.662, 902.661, 902.662); 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
211 CDI (901.661, 901.662, 902.661, 902.662); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
213 CDI (901.661, 901.662, 902.661, 902.662); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
216 CDI (902.661, 902.662); 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
214 NGT (901.661, 902.061, 902.062, 902.661, 902.662); 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05

SPRINTER 3-t Platforma / podwozie (B903)
308 D 2.3 (903.311, 903.312, 903.322); 2299 cm³; 58 kW; 79 hp; 1995-02–2000-04
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423); 2874 cm³; 90 kW; 122 hp; 1995-02–2000-04
314 (903.011, 903.012, 903.013, 903.022, 903.612,...; 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...; 2874 cm³; 75 kW; 102 hp; 1997-01–2000-04
308 D 2.3 (903.311, 903.322); 2299 cm³; 60 kW; 82 hp; 1996-11–2000-04
308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
313 CDI (903.611, 903.612, 903.621, 903.622, 903.623,...; 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,...; 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05
314 4x4 (903.612, 903.613, 903.622); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
311 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
313 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
316 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2685 cm³; 115 kW; 156 hp; 2002-08–2006-05
312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...; 2874 cm³; 85 kW; 116 hp; 1998-12–2001-09

SPRINTER 3-t Furgon (B903)
308 D 2.3 (903.361, 903.362, 903.363); 2299 cm³; 58 kW; 79 hp; 1995-02–2000-04
310 D 2.9 (903.461, 903.462, 903.463); 2874 cm³; 75 kW; 102 hp; 1995-02–2000-04
314 (903.061, 903.062, 903.063, 903.661, 903.662); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
312 D 2.9 (903.461, 903.462, 903.463); 2874 cm³; 90 kW; 122 hp; 1995-02–2000-04
308 CDI (903.661, 903.662, 903.663); 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
311 CDI (903.661, 903.662, 903.663); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
313 CDI (903.663, 903.662, 903.661); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
316 CDI (903.661, 903.662, 903.663); 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
314 NGT (903.661, 903.061, 903.062, 903.063, 903.662); 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05
314 4x4 (903.661, 903.662, 903.663); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
311 CDI 4x4 (903.662, 903.663); 2148 cm³; 80 kW; 109 hp; 2002-08–2006-05
313 CDI 4x4 (903.662, 903.663); 2148 cm³; 95 kW; 129 hp; 2002-08–2006-05
316 CDI 4x4 (903.662, 903.663); 2685 cm³; 115 kW; 156 hp; 2001-02–2006-05
312 D 2.9 4x4 (903.461, 903.462); 2874 cm³; 90 kW; 122 hp; 1997-05–2002-08
308 D 2.3 (903.361); 2299 cm³; 60 kW; 82 hp; 1995-02–2000-04

SPRINTER 2-t Platforma / podwozie (B901, B902)
208 D (901.311, 901.312, 901.321, 902.311, 902.312,...; 2299 cm³; 58 kW; 79 hp; 1995-01–2000-04; Built from:1995-02
214 (902.011, 902.012, 902.611, 902.612); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
210 D (901.421, 902.412); 2874 cm³; 75 kW; 102 hp; 1997-01–2000-04
208 D (901.311, 901.312, 901.321, 902.311, 902.312,...; 2299 cm³; 60 kW; 82 hp; 1996-09–2000-04
208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,...; 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
211 CDI (901.621, 902.611, 902.612, 902.621, 902.622); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
213 CDI (901.621, 902.611, 902.612, 902.621, 902.622); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
216 CDI (902.611, 902.612, 902.621, 902.622); 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
214 NGT (902.012, 902.611, 902.612); 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05

SPRINTER 3-t Autobus (B903)
312 D 2.9 (903.471, 903.472, 903.473); 2874 cm³; 90 kW; 122 hp; 1995-02–2000-04
308 D (903.372, 903.373); 2299 cm³; 58 kW; 79 hp; 1995-02–2000-04
314 (903.071, 903.072, 903.073, 903.671, 903.672,...; 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
312 D 2.9 4x4 (903.473); 2874 cm³; 90 kW; 122 hp; 1997-05–2002-08
310 D 4x4 (903.472, 903.473); 2874 cm³; 75 kW; 102 hp; 1997-05–2002-08
308 CDI (903.671, 903.672, 903.673); 2148 cm³; 60 kW; 82 hp; 2000-04–2006-05
311 CDI (903.671, 903.672); 2148 cm³; 80 kW; 109 hp; 2000-04–2006-05
313 CDI (903.671, 903.672, 903.673); 2148 cm³; 95 kW; 129 hp; 2000-04–2006-05
316 CDI (903.671, 903.672, 903.673); 2685 cm³; 115 kW; 156 hp; 2000-04–2006-05
314 NGT (903.072, 903.671, 903.672); 2295 cm³; 95 kW; 129 hp; 1995-02–2006-05
311 CDI 4x4 (903.672, 903.673); 2148 cm³; 80 kW; 109 hp; 2002-08–2006-05
313 CDI 4x4 (903.672, 903.673); 2148 cm³; 95 kW; 129 hp; 2002-08–2006-05
314 4x4 (903.672, 903.673); 2295 cm³; 105 kW; 143 hp; 1995-02–2006-05
316 CDI 4x4 (903.672, 903.673); 2685 cm³; 115 kW; 156 hp; 2002-08–2006-05
310 D (903.471, 903.472, 903.473); 2874 cm³; 75 kW; 102 hp; 1997-01–1999-12
308 D (903.371, 903.372, 903.373); 2299 cm³; 60 kW; 82 hp; 1997-03–2000-04

SPRINTER CLASSIC 3,5-t Furgon (B909)
311 CDI (909.632, 909.633); 2148 cm³; 80 kW; 109 hp; 2013-09–?
313 CDI (909.632, 909.633); 2148 cm³; 100 kW; 136 hp; 2017-01–?

Reference numbers

DELPHI: BG3237, BG3237C

MERCEDES-BENZ: 902 423 01 12, 902 423 03 12, 902 423 04 12, 902 423 05 12, 902 423 06 12, 902 423 06 12 07, 902 423 0712 07, 9024230712, A 902 423 01 12, A 902 423 03 12, A 902 423 04 12, A 902 423 05 12, A 902 423 06 12, A902 423 06 12 07, A902423041204, A9024230712, A902423071207

TEXTAR: 92073600, 92105300, 92137600, 92137603, 92137605, 98200073601, 98200105301, 98200137601, 98200137601PRO

TRW: DF4088, DF4088S, DF7299
