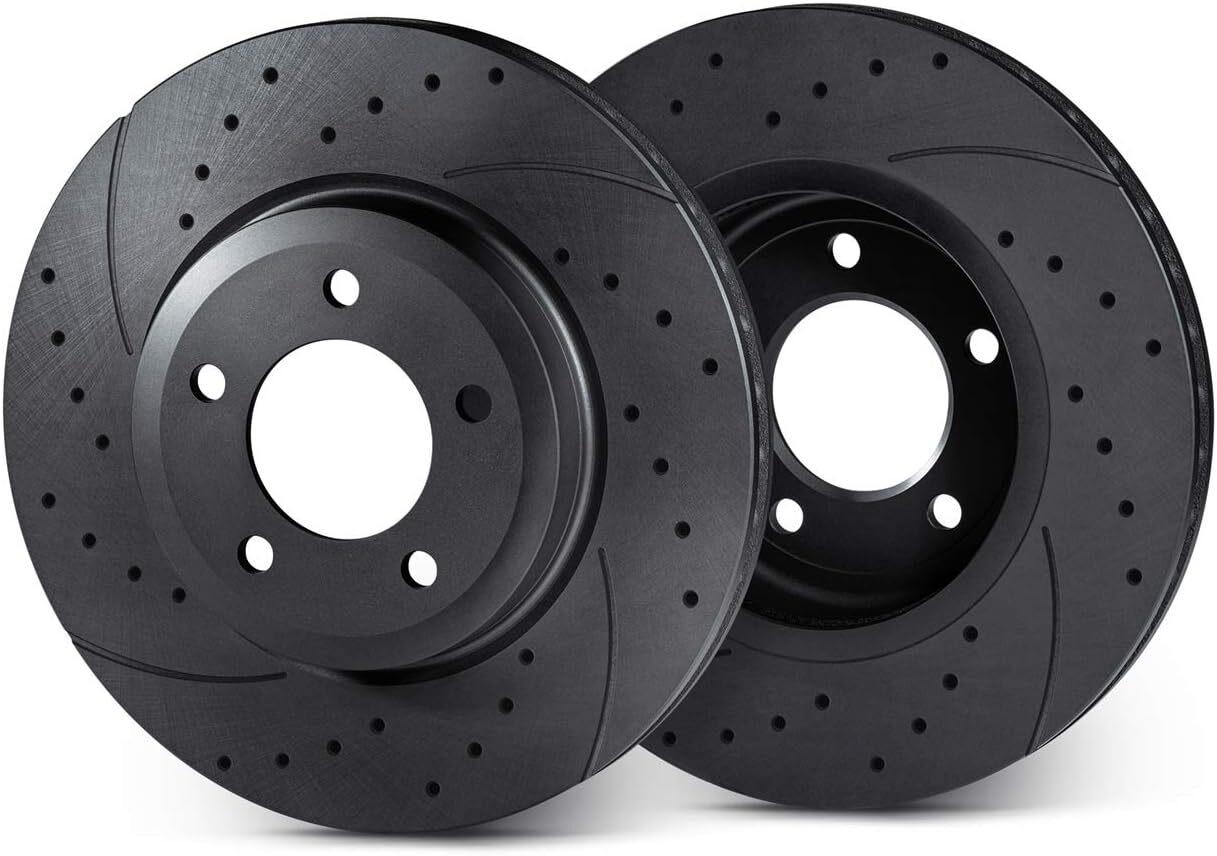

Brake discs front - grooved and drilled - For Mercedes-Benz Sprinter

Rotinger T5 combines a grooved and drilled braking surface with a sportier look behind the wheels. It is a suitable option when you want a more performance-focused appearance at the next disc replacement. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. The price is per pair.

Technical information

• Version: T5, slotted and drilled
• Position: front
• Diameter: 285 mm
• Height: 72,2 mm
• Thickness: 22 mm
• Minimum thickness: 19 mm
• Supplier dimension THREAD SIZE: 15,3 mm
• Inner diameter: 156,3 mm
• Centering diameter: 85 mm

Check before ordering

Model name and model year are not always sufficient to select the correct brake disc. Compare dimensions and reference numbers and check the conditions for your exact vehicle version. Date ranges below are shown as year-month.

Fits the following versions

SPRINTER 3-t Platforma / podwozie (B903)
308 D 2.3 (903.311, 903.312, 903.322); 2299 cm³; 58 kW; 79 hk; 1995-02–2000-04
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423); 2874 cm³; 90 kW; 122 hk; 1995-02–2000-04
314 (903.011, 903.012, 903.013, 903.022, 903.612,...; 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...; 2874 cm³; 75 kW; 102 hk; 1997-01–2000-04
308 D 2.3 (903.311, 903.322); 2299 cm³; 60 kW; 82 hk; 1996-11–2000-04
308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
313 CDI (903.611, 903.612, 903.621, 903.622, 903.623,...; 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,...; 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,...; 2295 cm³; 95 kW; 129 hk; 1995-02–2006-05
314 4x4 (903.612, 903.613, 903.622); 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
311 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
313 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
316 CDI 4x4 (903.612, 903.613, 903.622, 903.623); 2685 cm³; 115 kW; 156 hk; 2002-08–2006-05
312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,...; 2874 cm³; 85 kW; 116 hk; 1998-12–2001-09

SPRINTER 3-t Furgon (B903)
308 D 2.3 (903.361, 903.362, 903.363); 2299 cm³; 58 kW; 79 hk; 1995-02–2000-04
310 D 2.9 (903.461, 903.462, 903.463); 2874 cm³; 75 kW; 102 hk; 1995-02–2000-04
314 (903.061, 903.062, 903.063, 903.661, 903.662); 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
312 D 2.9 (903.461, 903.462, 903.463); 2874 cm³; 90 kW; 122 hk; 1995-02–2000-04
308 CDI (903.661, 903.662, 903.663); 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
311 CDI (903.661, 903.662, 903.663); 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
313 CDI (903.663, 903.662, 903.661); 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
316 CDI (903.661, 903.662, 903.663); 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
314 NGT (903.661, 903.061, 903.062, 903.063, 903.662); 2295 cm³; 95 kW; 129 hk; 1995-02–2006-05
314 4x4 (903.661, 903.662, 903.663); 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
311 CDI 4x4 (903.662, 903.663); 2148 cm³; 80 kW; 109 hk; 2002-08–2006-05
313 CDI 4x4 (903.662, 903.663); 2148 cm³; 95 kW; 129 hk; 2002-08–2006-05
316 CDI 4x4 (903.662, 903.663); 2685 cm³; 115 kW; 156 hk; 2001-02–2006-05
312 D 2.9 4x4 (903.461, 903.462); 2874 cm³; 90 kW; 122 hk; 1997-05–2002-08
308 D 2.3 (903.361); 2299 cm³; 60 kW; 82 hk; 1995-02–2000-04

SPRINTER 3-t Autobus (B903)
312 D 2.9 (903.471, 903.472, 903.473); 2874 cm³; 90 kW; 122 hk; 1995-02–2000-04
308 D (903.372, 903.373); 2299 cm³; 58 kW; 79 hk; 1995-02–2000-04
314 (903.071, 903.072, 903.073, 903.671, 903.672,...; 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
312 D 2.9 4x4 (903.473); 2874 cm³; 90 kW; 122 hk; 1997-05–2002-08
310 D 4x4 (903.472, 903.473); 2874 cm³; 75 kW; 102 hk; 1997-05–2002-08
308 CDI (903.671, 903.672, 903.673); 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
311 CDI (903.671, 903.672); 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
313 CDI (903.671, 903.672, 903.673); 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
316 CDI (903.671, 903.672, 903.673); 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
314 NGT (903.072, 903.671, 903.672); 2295 cm³; 95 kW; 129 hk; 1995-02–2006-05
311 CDI 4x4 (903.672, 903.673); 2148 cm³; 80 kW; 109 hk; 2002-08–2006-05
313 CDI 4x4 (903.672, 903.673); 2148 cm³; 95 kW; 129 hk; 2002-08–2006-05
314 4x4 (903.672, 903.673); 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
316 CDI 4x4 (903.672, 903.673); 2685 cm³; 115 kW; 156 hk; 2002-08–2006-05
310 D (903.471, 903.472, 903.473); 2874 cm³; 75 kW; 102 hk; 1997-01–1999-12
308 D (903.371, 903.372, 903.373); 2299 cm³; 60 kW; 82 hk; 1997-03–2000-04

SPRINTER 4-t Autobus (B904)
414 (904.662, 904.663); 2295 cm³; 105 kW; 143 hk; 1996-02–2006-05
408 CDI (904.662, 904.663); 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
411 CDI (904.662, 904.663); 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
413 CDI (904.663, 904.662); 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
416 CDI (904.662, 904.663); 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05

SPRINTER 4-t Platforma / podwozie (B904)
414 (904.012, 904.013, 904.612, 904.613); 2295 cm³; 105 kW; 143 hk; 1995-02–2006-05
414 4x4 (904.012, 904.013, 904.612, 904.613); 2295 cm³; 105 kW; 143 hk; 1997-05–2006-05
408 CDI; 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
411 CDI; 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
411 CDI 4x4; 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
413 CDI; 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
413 CDI 4x4; 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
416 CDI; 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
416 CDI 4x4; 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
408 D; 2299 cm³; 58 kW; 79 hk; 1996-02–2006-05
410 D; 2874 cm³; 75 kW; 102 hk; 1996-02–2006-05; construction year from 199609;
410 D 4x4; 2874 cm³; 75 kW; 102 hk; 1997-05–2006-05
412 D; 2874 cm³; 85 kW; 115 hk; 1996-02–2006-05
412 D 4x4; 2874 cm³; 85 kW; 115 hk; 1997-05–2006-05
412 D; 2874 cm³; 90 kW; 122 hk; 1996-02–2006-05
412 D 4x4; 2874 cm³; 90 kW; 122 hk; 1997-05–2006-05

SPRINTER 4-t Furgon (B904)
414 (904.062, 904.063, 904.662, 904.663); 2295 cm³; 105 kW; 143 hk; 1996-02–2006-05
414 4x4 (904.062, 904.063, 904.662, 904.663); 2295 cm³; 105 kW; 143 hk; 1997-05–2006-05
408 CDI; 2148 cm³; 60 kW; 82 hk; 2000-04–2006-05
411 CDI; 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
413 CDI; 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
416 CDI; 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
411 CDI 4x4; 2148 cm³; 80 kW; 109 hk; 2000-04–2006-05
413 CDI 4x4; 2148 cm³; 95 kW; 129 hk; 2000-04–2006-05
416 CDI 4x4; 2685 cm³; 115 kW; 156 hk; 2000-04–2006-05
408 D; 2299 cm³; 58 kW; 79 hk; 1996-02–2006-05
410 D; 2874 cm³; 75 kW; 102 hk; 1996-02–2006-05; construction year from 199609;
410 D 4x4; 2874 cm³; 75 kW; 102 hk; 1997-05–2006-05
412 D; 2874 cm³; 85 kW; 115 hk; 1996-02–2006-05
412 D 4x4; 2874 cm³; 85 kW; 115 hk; 1997-05–2006-05
412 D; 2874 cm³; 90 kW; 122 hk; 1996-02–2006-05
412 D 4x4; 2874 cm³; 90 kW; 122 hk; 1997-05–2006-05
414 D 4x4; 2874 cm³; 90 kW; 122 hk; 1997-05–2006-05
414 NGT; 2295 cm³; 95 kW; 129 hk; 1995-02–2006-05

SPRINTER CLASSIC 3,5-t Furgon (B909)
311 CDI (909.632, 909.633); 2148 cm³; 80 kW; 109 hk; 2013-09–?
313 CDI (909.632, 909.633); 2148 cm³; 100 kW; 136 hk; 2017-01–?

SPRINTER CLASSIC 4,6-t Autobus (B909)
411 CDI (909.843); 2148 cm³; 80 kW; 109 hk; 2013-09–?

SPRINTER CLASSIC 4,6-t Furgon (B909)
413 CDI (909.643); 2148 cm³; 100 kW; 136 hk; 2017-01–?

Reference numbers

DELPHI: BG4067

MERCEDES-BENZ: 903 421 00 12, 903 421 01 12, A 903 421 00 12, A 903 421 01 12

OE: 5114479AB, 9034210112, 5114479AA, 903 421 00 12, 903 421 01 12, A 903 421 00 12, A 903 421 01 12

TEXTAR: 93127800, 93127805, 98200127801

TRW: DF6194S
