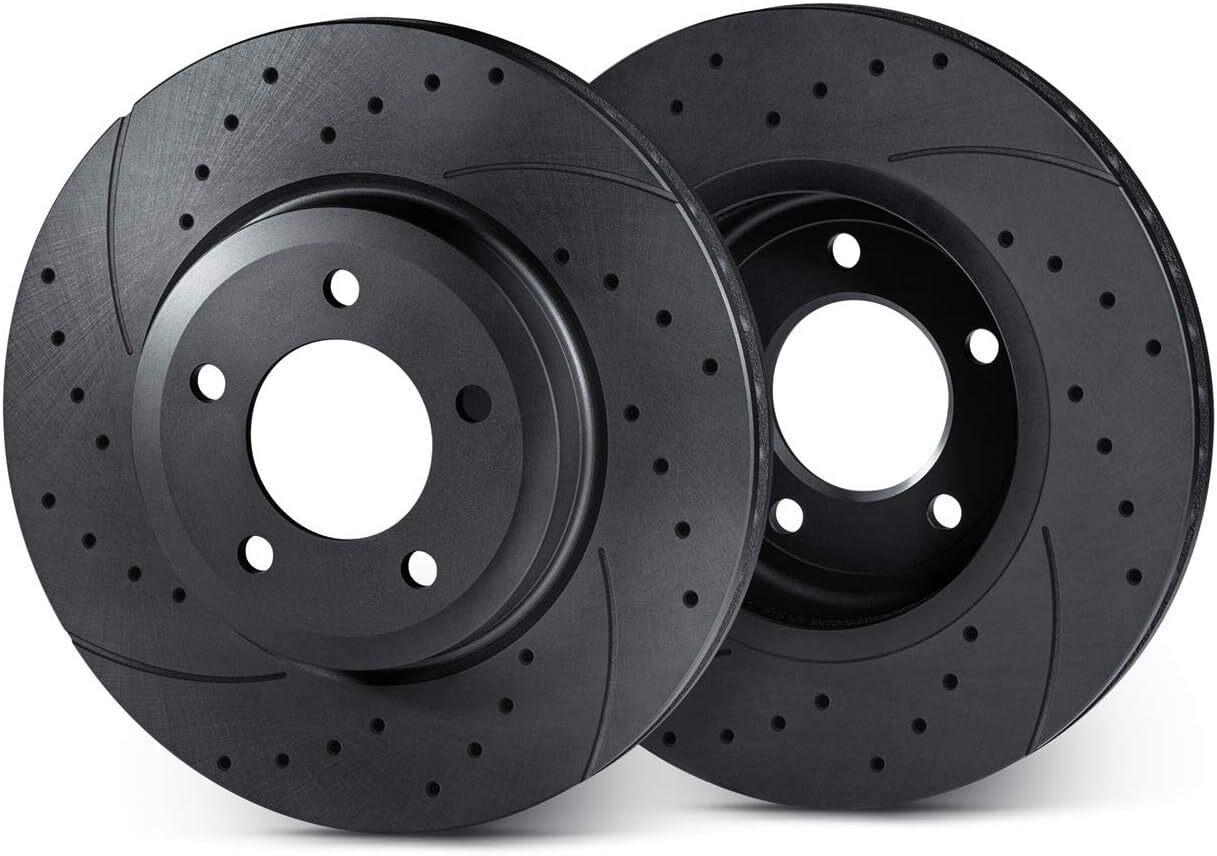

Brake discs rear - grooved and drilled - For Toyota

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: rear
• Diameter: 268,9 mm
• Height: 55,5 mm
• Thickness: 9,1 mm
• Minimum thickness: 7,4 mm
• Supplier dimension THREAD SIZE: 14,5 mm
• Inner diameter: 173 mm
• Centring diameter: 55,1 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

COROLLA (_E12_) / COROLLA / ALLEX (_E12_)
1.8 VVTL-i TS (ZZE123_, ZZE123R); 1796 cm³; 160 kW; 218 hp; 2005-10–2006-12
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2001-11–2007-02
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2002-01–2006-12; Built to:2004-04
1.8 VVTL-i TS (ZZE123); 1796 cm³; 141 kW; 192 hp; 2001-11–2007-02

YARIS (_P1_) / ECHO (_P1_)
1.0 (SCP10_, SCP10R); 998 cm³; 50 kW; 68 hp; 1999-04–2005-09
1.3 (NCP10, SCP12_); 1299 cm³; 63 kW; 86 hp; 1999-08–2005-11
1.5 (NCP13_, NCP13R); 1497 cm³; 78 kW; 106 hp; 2001-04–2005-09
1.4 D-4D (NLP10_, NLP10R); 1364 cm³; 55 kW; 75 hp; 2001-10–2005-09
1.3 (SCP12_, SCP13_, SCP12R, SCP13R); 1298 cm³; 64 kW; 87 hp; 2002-04–2005-09
1.0 (SCP10_, SCP10R); 998 cm³; 48 kW; 65 hp; 2003-03–2005-09
1.5 (NCP13_, NCP13R); 1497 cm³; 77 kW; 105 hp; 2003-01–2005-11
1.5 (NCP13_, NCP13R); 1497 cm³; 110 kW; 150 hp; 2000-03–2005-07

YARIS VERSO (_P2_)
1.3 (NCP20_, NCP22_, NCP20R, NCP22R); 1299 cm³; 63 kW; 86 hp; 1999-08–2002-10
1.5 (NCP21_); 1497 cm³; 78 kW; 106 hp; 2000-03–2005-09
1.4 D-4D (NLP20_, NLP22_); 1364 cm³; 55 kW; 75 hp; 2000-09–2005-09
1.3 (NCP20_, NCP22_, NCP20R, NCP22R); 1299 cm³; 62 kW; 84 hp; 2002-11–2005-09
1.5 (NCP21_); 1497 cm³; 77 kW; 105 hp; 2000-03–2005-09

COROLLA estate (_E12_)
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2002-01–2007-02
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2002-01–2007-08
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 66 kW; 90 hp; 2002-01–2007-02
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 85 kW; 116 hp; 2004-04–2007-02

COROLLA saloon (_E12_)
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2001-10–2006-10; Built to:2004-05
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2001-10–2008-03; Built to:2004-05
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 66 kW; 90 hp; 2002-01–2006-12
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 85 kW; 116 hp; 2004-06–2007-07

COROLLA Verso (_E12_)
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2001-08–2004-05
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 66 kW; 90 hp; 2002-01–2004-05
1.8 VVT-i (ZZE122_, ZZE122R); 1794 cm³; 99 kW; 135 hp; 2001-12–2004-05

MATRIX (_E13_)
1.8 4WD (ZZE138); 1794 cm³; 91 kW; 124 hp; 2002-01–2004-02
1.8 VVTi (ZZE136); 1794 cm³; 96 kW; 131 hp; 2002-01–2004-02

YARIS VERSO VAN (_P2_)
1.3 VVTi (NCP22_); 1299 cm³; 63 kW; 86 hp; 2000-03–2005-09
1.5 VVTi (NCP21_); 1497 cm³; 78 kW; 106 hp; 2000-03–2003-03
1.4 D4d (NLP22_); 1364 cm³; 55 kW; 75 hp; 2001-10–2005-09
1.3 VVTi (NCP22_); 1299 cm³; 62 kW; 84 hp; 2003-04–2005-09

Reference numbers

DELPHI: BG3519, BG3867

TEXTAR: 92126200, 92126203, 98200126201

TOYOTA: 42431 02161, 42431 12210, 42431 12250, 42431 52050, 4243102050, 424310D050, 424310E070, 4243147020, 4243152060

TRW: DF4335
