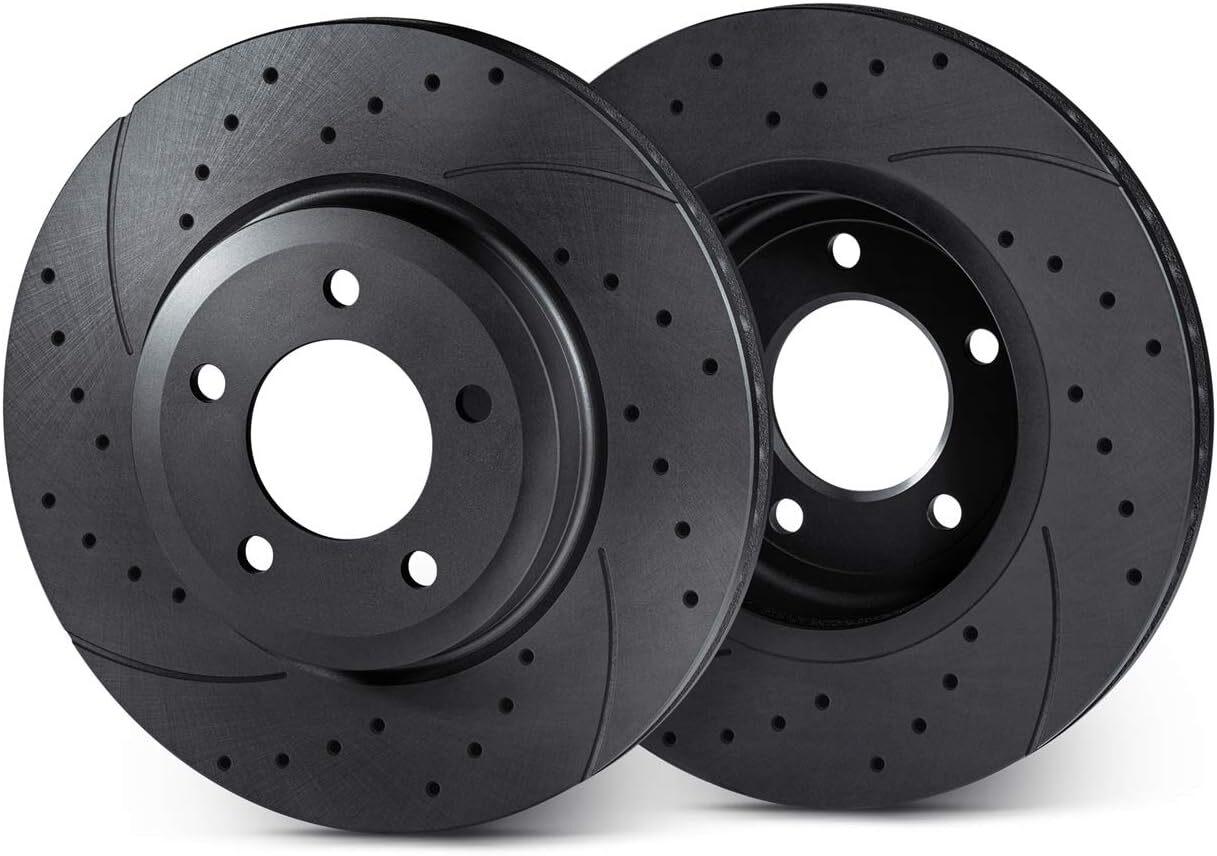

Brake discs rear - grooved and drilled - For Toyota

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: rear
• Diameter: 257,9 mm
• Height: 55,9 mm
• Thickness: 9 mm
• Minimum thickness: 8 mm
• Supplier dimension THREAD SIZE: 14,5 mm
• Inner diameter: 167 mm
• Centring diameter: 55 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

COROLLA (_E12_) / COROLLA / ALLEX (_E12_)
1.8 VVTL-i TS (ZZE123_, ZZE123R); 1796 cm³; 160 kW; 218 hp; 2005-10–2006-12
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2001-11–2007-02
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2002-01–2006-12
1.8 VVTL-i TS (ZZE123); 1796 cm³; 141 kW; 192 hp; 2001-11–2007-02

YARIS (_P1_) / ECHO (_P1_)
1.0 (SCP10_, SCP10R); 998 cm³; 50 kW; 68 hp; 1999-04–2005-09
1.3 (NCP10, SCP12_); 1299 cm³; 63 kW; 86 hp; 1999-08–2005-11
1.5 (NCP13_, NCP13R); 1497 cm³; 78 kW; 106 hp; 2001-04–2005-09
1.4 D-4D (NLP10_, NLP10R); 1364 cm³; 55 kW; 75 hp; 2001-10–2005-09
1.3 (SCP12_, SCP13_, SCP12R, SCP13R); 1298 cm³; 64 kW; 87 hp; 2002-04–2005-09
1.0 (SCP10_, SCP10R); 998 cm³; 48 kW; 65 hp; 2003-03–2005-09
1.5 (NCP13_, NCP13R); 1497 cm³; 77 kW; 105 hp; 2003-01–2005-11

YARIS VERSO (_P2_)
1.3 (NCP20_, NCP22_, NCP20R, NCP22R); 1299 cm³; 63 kW; 86 hp; 1999-08–2002-10
1.5 (NCP21_); 1497 cm³; 78 kW; 106 hp; 2000-03–2005-09
1.4 D-4D (NLP20_, NLP22_); 1364 cm³; 55 kW; 75 hp; 2000-09–2005-09
1.3 (NCP20_, NCP22_, NCP20R, NCP22R); 1299 cm³; 62 kW; 84 hp; 2002-11–2005-09
1.5 (NCP21_); 1497 cm³; 77 kW; 105 hp; 2000-03–2005-09

COROLLA estate (_E12_)
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2002-01–2007-02
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2002-01–2007-08
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 66 kW; 90 hp; 2002-01–2007-02

COROLLA saloon (_E12_)
1.4 VVT-i (ZZE120_, ZZE120R); 1398 cm³; 71 kW; 97 hp; 2001-10–2006-10; Built from:2004-06
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2001-10–2008-03; Built from:2004-06

COROLLA Verso (_E12_)
1.6 VVT-i (ZZE121_, ZZE121R); 1598 cm³; 81 kW; 110 hp; 2001-08–2004-05
2.0 D-4D (CDE120_, CDE120R); 1995 cm³; 66 kW; 90 hp; 2002-01–2004-05
1.8 VVT-i (ZZE122_, ZZE122R); 1794 cm³; 99 kW; 135 hp; 2001-12–2004-05

MATRIX (_E13_)
1.8 VVTi (ZZE136); 1794 cm³; 96 kW; 131 hp; 2002-01–2004-02

Reference numbers

DELPHI: BG3889

TEXTAR: 92126100, 92126103, 98200126101

TOYOTA: 42431 02070, 42431 02071, 4243102050, 42431YZZAD

TRW: DF4379, DF4379S, RCDI06240
