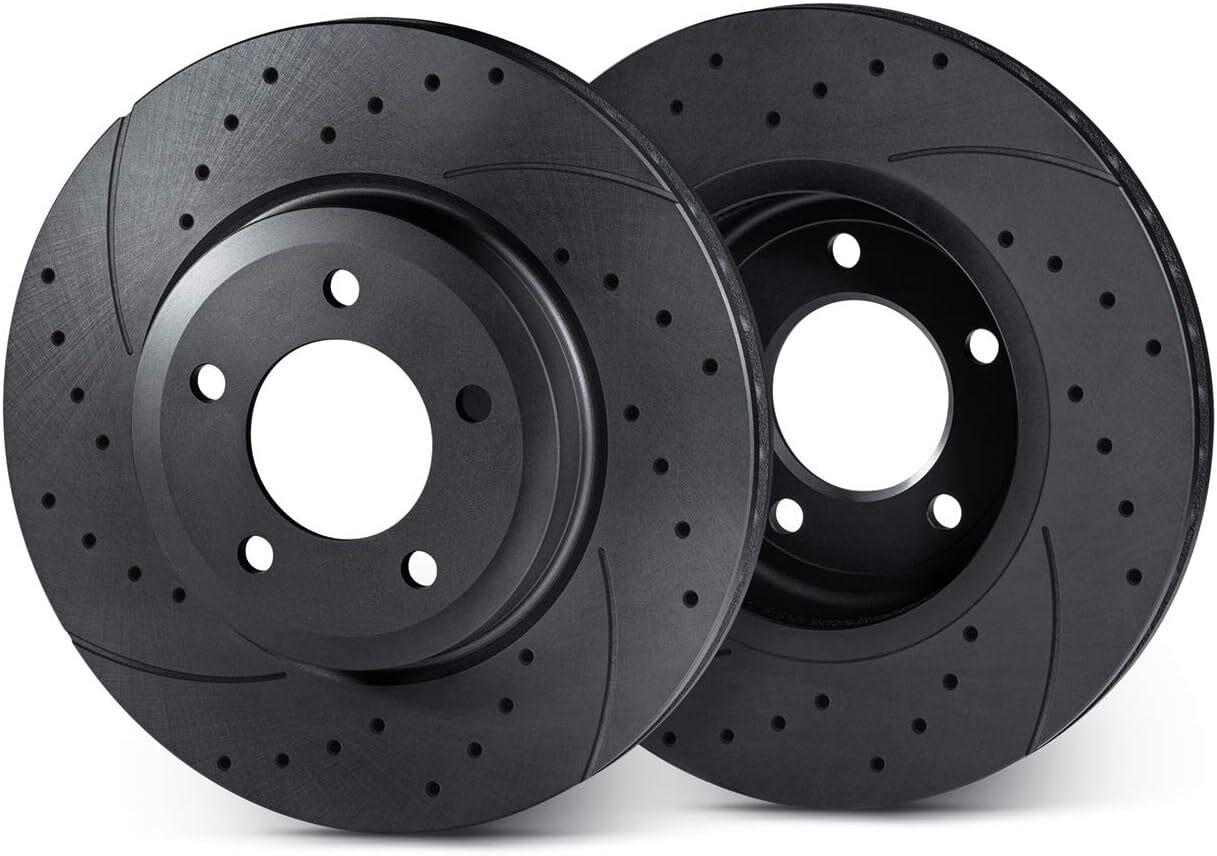

Brake discs front - grooved and drilled - For VW

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: front
• Diameter: 238,8 mm
• Height: 38,6 mm
• Thickness: 9,9 mm
• Minimum thickness: 8 mm
• Supplier dimension THREAD SIZE: 13,6 mm
• Inner diameter: 124,2 mm
• Centring diameter: 65 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

Derby (86C, 80)
1.0; 1043 cm³; 29 kW; 40 hp; 1981-10–1984-12
1.1; 1093 cm³; 37 kW; 50 hp; 1981-10–1983-07
1.3; 1272 cm³; 37 kW; 50 hp; 1983-08–1984-12
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1984-12
1.3; 1272 cm³; 44 kW; 60 hp; 1981-08–1983-07; Built from: 1982-08
1.3; 1272 cm³; 55 kW; 75 hp; 1982-09–1984-12

Golf I (17)
1.1; 1093 cm³; 37 kW; 50 hp; 1974-04–1983-07; Built from: 1978-08
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1983-12
1.3; 1272 cm³; 44 kW; 60 hp; 1979-08–1983-07
1.5 D; 1471 cm³; 37 kW; 50 hp; 1976-08–1980-07; Built from: 1979-02
1.6 D; 1588 cm³; 40 kW; 54 hp; 1980-08–1983-07
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1982-03–1983-07; Built from: 1982-08

Golf II (19E, 1G1)
1.0; 1043 cm³; 33 kW; 45 hp; 1983-11–1985-08
1.0; 1043 cm³; 37 kW; 50 hp; 1985-08–1991-10
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1986-06–1992-12
1.3; 1272 cm³; 37 kW; 50 hp; 1985-08–1987-12
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1987-06
1.3; 1272 cm³; 43 kW; 58 hp; 1983-08–1986-10
1.6 D; 1588 cm³; 37 kW; 50 hp; 1983-08–1991-10
1.6 D; 1588 cm³; 40 kW; 54 hp; 1983-08–1991-10

Golf II van (19E, 1G1)
1.3; 1272 cm³; 40 kW; 54 hp; 1983-08–1990-07
1.6 D; 1588 cm³; 40 kW; 54 hp; 1983-08–1991-07

Jetta I (16)
1.1; 1093 cm³; 37 kW; 50 hp; 1979-08–1984-02; Built up to: 1983-07
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1984-02
1.3; 1272 cm³; 44 kW; 60 hp; 1979-08–1984-02; Built up to: 1983-07
1.5 D; 1471 cm³; 37 kW; 50 hp; 1978-08–1980-07; Built from: 1979-08
1.6 D; 1588 cm³; 40 kW; 54 hp; 1980-08–1984-02; Built up to: 1983-07
1.6; 1588 cm³; 55 kW; 75 hp; 1981-08–1983-07; Engine code: FR
1.6; 1588 cm³; 63 kW; 85 hp; 1978-08–1984-02; Built from: 1980-08; Built up to: 1983-07

Jetta II (19E, 1G2, 165)
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1987-06–1991-12; Built up to: 1988-07
1.3; 1272 cm³; 40 kW; 55 hp; 1984-01–1987-06
1.3; 1272 cm³; 43 kW; 58 hp; 1984-01–1986-10
1.6 D; 1588 cm³; 40 kW; 54 hp; 1984-01–1991-10
1.6 TD; 1588 cm³; 44 kW; 60 hp; 1990-01–1991-10
1.6; 1595 cm³; 55 kW; 75 hp; 1984-01–1992-07; Built from: 1986-08; Built up to: 1987-07

Passat B1 (32)
1.3; 1272 cm³; 40 kW; 55 hp; 1973-05–1980-07; Built from: 1978-02
1.3; 1272 cm³; 44 kW; 60 hp; 1978-01–1980-07
1.3; 1297 cm³; 40 kW; 55 hp; 1973-05–1978-01
1.3; 1297 cm³; 44 kW; 60 hp; 1973-05–1978-01
1.5 D; 1471 cm³; 37 kW; 50 hp; 1977-08–1980-07

Passat B1 Variant (33)
1.3; 1272 cm³; 40 kW; 55 hp; 1973-05–1980-07; Built from: 1978-02; Built up to: 1979-07
1.3; 1297 cm³; 40 kW; 55 hp; 1973-05–1978-01
1.3; 1297 cm³; 44 kW; 60 hp; 1973-10–1978-01
1.5 D; 1471 cm³; 37 kW; 50 hp; 1977-02–1980-07; Built from: 1977-08

Passat B2 (32B)
1.3; 1272 cm³; 40 kW; 55 hp; 1980-08–1983-07
1.3; 1272 cm³; 44 kW; 60 hp; 1980-08–1986-07; Built up to: 1981-07

Polo Classic (86C, 80)
1.0; 1043 cm³; 29 kW; 40 hp; 1985-01–1986-10
1.0; 1043 cm³; 33 kW; 45 hp; 1985-01–1994-09; Built up to: 1990-09
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1987-07–1994-09; Built from: 1990-10
1.3 D; 1272 cm³; 33 kW; 45 hp; 1986-08–1988-12
1.3; 1272 cm³; 40 kW; 55 hp; 1985-01–1987-07
1.4 D; 1398 cm³; 35 kW; 48 hp; 1990-10–1994-09; Built up to: 1992-07

Polo van/hatchback (86CF)
1.0; 1043 cm³; 33 kW; 45 hp; 1992-08–1994-07
1.3; 1272 cm³; 40 kW; 54 hp; 1992-08–1994-07
1.4 D; 1398 cm³; 35 kW; 48 hp; 1992-08–1994-07

Polo II (86C, 80)
1.0 Cat; 1043 cm³; 33 kW; 45 hp; 1989-08–1994-09
1.0; 1043 cm³; 29 kW; 40 hp; 1981-10–1986-10
1.0; 1043 cm³; 33 kW; 45 hp; 1985-08–1992-01
1.1; 1093 cm³; 37 kW; 50 hp; 1981-10–1989-09; Built up to: 1983-07
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1987-07–1994-09
1.3 Cat; 1272 cm³; 55 kW; 75 hp; 1989-10–1991-03
1.3 D; 1272 cm³; 33 kW; 45 hp; 1986-08–1990-07
1.3; 1272 cm³; 37 kW; 50 hp; 1983-08–1985-07; Built from: 1985-03
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1988-07
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1988-07
1.3; 1272 cm³; 44 kW; 60 hp; 1981-10–1983-07
1.3; 1272 cm³; 55 kW; 75 hp; 1982-09–1989-09
1.4 D; 1398 cm³; 35 kW; 48 hp; 1990-10–1994-09

Polo Iii Classic (6V2)
110 1.9 TDI; 1896 cm³; 81 kW; 110 hp; 1998-06–2002-01; PR code: 1LA
54 1.4; 1390 cm³; 40 kW; 54 hp; 1998-01–1999-08; PR code: 1LA
57 1.7 SDI; 1715 cm³; 42 kW; 57 hp; 1997-07–2001-09; PR code: 1LA
60 1.4; 1390 cm³; 44 kW; 60 hp; 1995-12–2001-09; PR code: 1LA
64 1,9 D; 1896 cm³; 47 kW; 64 hp; 1996-01–1996-10; Built from: 1996-05
64 1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1995-12–1999-08; Built from: 1996-05; Built up to: 1996-10
68 1.9 SDI; 1896 cm³; 50 kW; 68 hp; 1999-08–2002-01; PR code: 1LA
75 1.6; 1595 cm³; 55 kW; 75 hp; 1995-11–1997-09; PR code: 1LA
75 1.6; 1598 cm³; 55 kW; 75 hp; 1995-11–2001-09; PR code: 1LA
90 1.8; 1781 cm³; 66 kW; 90 hp; 1997-01–2001-09; PR code: 1LA; VIN up to: 6K-W-518500
90 1.9 TDI; 1896 cm³; 66 kW; 90 hp; 1996-09–2001-09; PR code: 1LA

Polo van van/estate (6V5)
1.4; 1390 cm³; 44 kW; 60 hp; 1997-08–1999-12; PR code: 1LA
1.6; 1598 cm³; 55 kW; 75 hp; 1997-09–1998-12; PR code: 1LA
1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1995-12–1999-08; PR code: 1LA
1.9 SDI; 1896 cm³; 50 kW; 68 hp; 1999-10–2001-09; PR code: 1LA

Polo Variant (6V5)
1.4; 1390 cm³; 40 kW; 54 hp; 1998-01–1999-08; PR code: 1LA
1.4; 1390 cm³; 44 kW; 60 hp; 1997-05–2001-09; PR code: 1LA
1.6; 1598 cm³; 55 kW; 75 hp; 1997-05–2001-09; PR code: 1LA
1.7 SDI; 1715 cm³; 42 kW; 57 hp; 1997-08–2001-09; PR code: 1LA
1.8; 1781 cm³; 66 kW; 90 hp; 1997-05–2001-09; PR code: 1LA
1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1997-06–2001-09; PR code: 1LA
1.9 SDI; 1896 cm³; 50 kW; 68 hp; 1999-08–2001-09; PR code: 1LA
1.9 TDI; 1896 cm³; 66 kW; 90 hp; 1997-05–2001-09; PR code: 1LA
1.9 TDI; 1896 cm³; 81 kW; 110 hp; 1998-06–2001-09

Polo coupe (86C, 80)
1.0 Cat; 1043 cm³; 33 kW; 45 hp; 1989-08–1994-09
1.0; 1043 cm³; 29 kW; 40 hp; 1982-05–1986-10
1.0; 1043 cm³; 33 kW; 45 hp; 1985-08–1992-01
1.1; 1093 cm³; 37 kW; 50 hp; 1981-10–1983-07
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1987-07–1994-08
1.3 Cat; 1272 cm³; 55 kW; 75 hp; 1989-10–1994-09
1.3 D; 1272 cm³; 33 kW; 45 hp; 1986-08–1990-08
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1987-06
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1988-07
1.3; 1272 cm³; 44 kW; 60 hp; 1981-10–1983-07
1.3; 1272 cm³; 55 kW; 75 hp; 1982-09–1989-09
1.3; 1272 cm³; 57 kW; 78 hp; 1991-03–1994-09
1.4 D; 1398 cm³; 35 kW; 48 hp; 1990-08–1994-09

Santana (32B)
1.3; 1272 cm³; 44 kW; 60 hp; 1981-08–1983-07
1.6 D; 1588 cm³; 40 kW; 54 hp; 1981-08–1984-12; Built up to: 1982-07

Scirocco (53)
1.1; 1093 cm³; 37 kW; 50 hp; 1974-04–1979-07; Built from: 1978-08
1.3; 1272 cm³; 44 kW; 60 hp; 1979-08–1980-07

Scirocco (53B)
1.3; 1272 cm³; 44 kW; 60 hp; 1980-08–1983-12; Built up to: 1983-06
1.6; 1588 cm³; 63 kW; 85 hp; 1980-08–1984-04; Built up to: 1983-06

Reference numbers

DELPHI: BG117, BG2117

TEXTAR: 92009300, 92009303, 98200009301

TRW: DF1518

VW: 811 615 301 B, 811615301, 823615301
