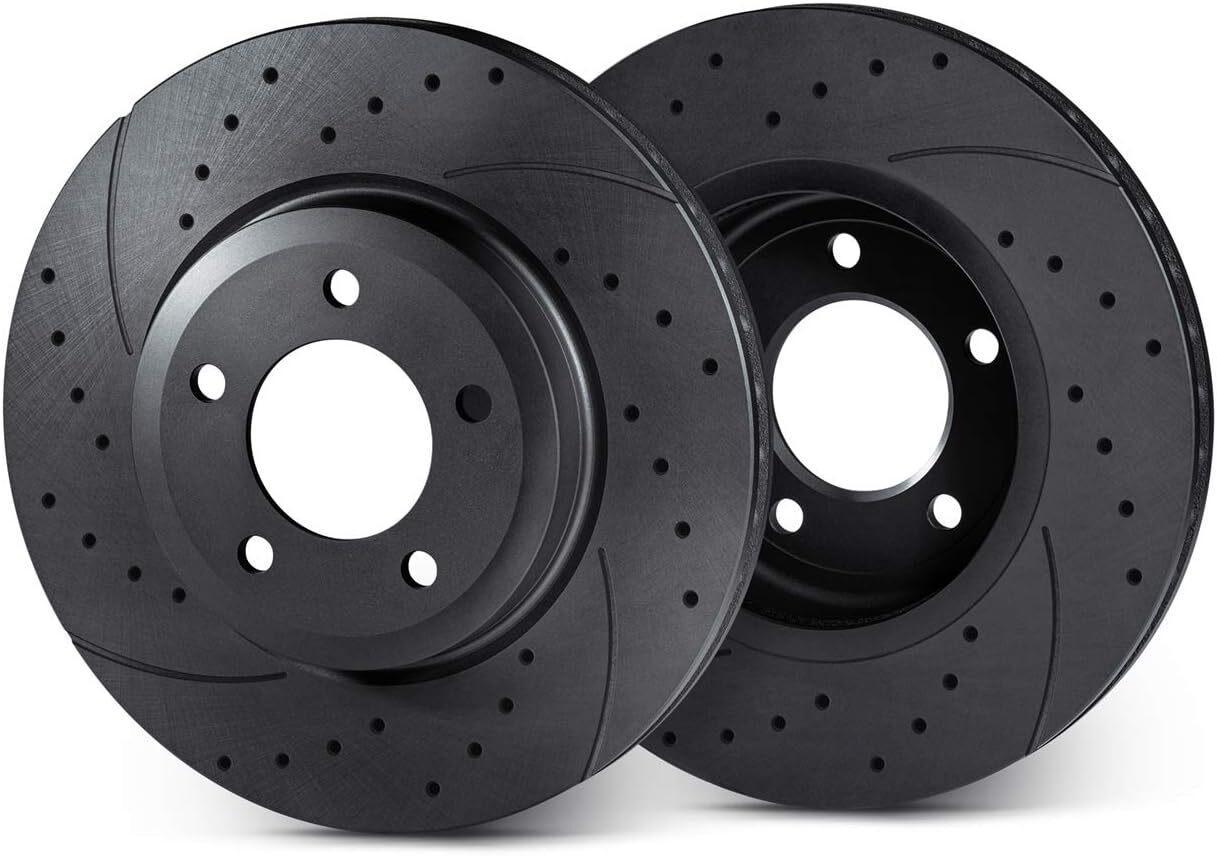

Brake discs front - grooved and drilled - For VW

Rotinger T5 combines a grooved and drilled braking surface with a sporty look behind the wheels. An option for adding a performance-inspired appearance when replacing your brake discs. Select the correct version using the vehicle brake system, disc dimensions and fitment details below.

Supplied as a pair of two brake discs. Price is per pair.

Technical specifications

• Version: T5, grooved and drilled
• Position: front
• Diameter: 238,8 mm
• Height: 35,1 mm
• Thickness: 11,9 mm
• Minimum thickness: 10 mm
• Supplier dimension THREAD SIZE: 13,6 mm
• Inner diameter: 124,2 mm
• Centring diameter: 65 mm

Check before ordering

Model name and model year alone may not identify the correct brake disc. Compare dimensions and reference numbers, and check the PR codes and brake system requirements for your vehicle version. Date ranges below use year-month.

Compatible versions

Caddy I (14)
1.5; 1457 cm³; 51 kW; 70 hp; 1982-08–1983-07
1.6 D; 1588 cm³; 40 kW; 55 hp; 1982-08–1992-07
1.6; 1588 cm³; 55 kW; 75 hp; 1982-10–1983-10
1.6; 1595 cm³; 55 kW; 75 hp; 1983-01–1992-07; Built from: 1983-08
1.8; 1781 cm³; 70 kW; 95 hp; 1985-08–1992-07

Golf I (17)
1.1; 1093 cm³; 37 kW; 50 hp; 1974-04–1983-07; Built from: 1975-08; Built up to: 1978-07
1.1; 1093 cm³; 38 kW; 52 hp; 1976-08–1980-07
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1983-12; Built from: 1983-08
1.5 D; 1471 cm³; 37 kW; 50 hp; 1976-08–1980-07; Built up to: 1979-01
1.5; 1457 cm³; 51 kW; 70 hp; 1977-08–1983-07
1.5; 1471 cm³; 51 kW; 70 hp; 1974-04–1975-12
1.6 GTI; 1588 cm³; 81 kW; 110 hp; 1976-08–1982-07
1.6; 1588 cm³; 51 kW; 70 hp; 1975-08–1977-07
1.6; 1588 cm³; 55 kW; 75 hp; 1975-08–1984-02; Built up to: 1983-07
1.6; 1595 cm³; 55 kW; 75 hp; 1983-01–1984-02; Built up to: 1983-07
1.8 GTI; 1781 cm³; 82 kW; 112 hp; 1982-08–1983-12

Golf I convertible (155)
1.3; 1272 cm³; 40 kW; 54 hp; 1983-08–1986-07
1.5; 1457 cm³; 51 kW; 70 hp; 1979-01–1983-11; Built up to: 1983-07
1.6; 1588 cm³; 55 kW; 75 hp; 1979-08–1983-07
1.6; 1595 cm³; 53 kW; 72 hp; 1986-04–1990-02
1.6; 1595 cm³; 55 kW; 75 hp; 1983-08–1992-04; Built up to: 1990-07

Golf II (19E, 1G1)
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1986-06–1992-12
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1987-06
1.6 D; 1588 cm³; 37 kW; 50 hp; 1983-08–1991-10
1.6 D; 1588 cm³; 40 kW; 54 hp; 1983-08–1991-10
1.6 TD; 1588 cm³; 44 kW; 60 hp; 1989-08–1991-10
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1983-08–1991-10
1.6 TD; 1588 cm³; 59 kW; 80 hp; 1989-04–1991-10
1.6; 1595 cm³; 51 kW; 69 hp; 1986-08–1991-07
1.6; 1595 cm³; 51 kW; 70 hp; 1986-10–1992-12
1.6; 1595 cm³; 53 kW; 72 hp; 1986-02–1991-10
1.6; 1595 cm³; 55 kW; 75 hp; 1983-08–1992-07
1.8 Syncro; 1781 cm³; 66 kW; 90 hp; 1986-02–1991-07
1.8 Syncro; 1781 cm³; 72 kW; 98 hp; 1988-08–1991-07
1.8 i Cat Syncro; 1781 cm³; 66 kW; 90 hp; 1987-08–1991-10
1.8 i Cat; 1781 cm³; 66 kW; 90 hp; 1987-08–1991-10
1.8; 1781 cm³; 62 kW; 84 hp; 1986-08–1990-01
1.8; 1781 cm³; 66 kW; 90 hp; 1984-08–1991-10

Golf II van (19E, 1G1)
1.8 i; 1781 cm³; 66 kW; 90 hp; 1987-08–1991-07

Golf Iii (1H1)
1.4; 1390 cm³; 40 kW; 55 hp; 1991-11–1997-08
1.4; 1390 cm³; 44 kW; 60 hp; 1991-10–1997-08
1.6; 1598 cm³; 55 kW; 75 hp; 1992-09–1997-08; PR code: 1LK; PR code: 1LM
1.8 Syncro (1HX1); 1781 cm³; 66 kW; 90 hp; 1993-01–1997-08
1.8; 1781 cm³; 55 kW; 75 hp; 1991-11–1997-08
1.8; 1781 cm³; 66 kW; 90 hp; 1991-11–1997-08; TecDoc engine number: 4975
1.9 D; 1896 cm³; 47 kW; 64 hp; 1991-11–1997-08; Built up to: 1996-04
1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1995-07–1997-08; Built up to: 1996-04
1.9 TD, GTD; 1896 cm³; 55 kW; 75 hp; 1991-11–1997-08
1.9 TDI Syncro (1HX1); 1896 cm³; 66 kW; 90 hp; 1995-08–1997-12; PR code: 1LK; PR code: 1LM

Golf Iii van (1H1)
1.4; 1390 cm³; 44 kW; 60 hp; 1991-08–1996-05; TecDoc engine number: 4973
1.8; 1781 cm³; 66 kW; 90 hp; 1991-08–1997-12; TecDoc engine number: 4975
1.9 D; 1896 cm³; 55 kW; 75 hp; 1991-08–1995-07

Golf Iii Variant (1H5)
1.4; 1390 cm³; 40 kW; 55 hp; 1993-07–1999-04; Built up to: 1995-07
1.4; 1390 cm³; 44 kW; 60 hp; 1993-07–1999-04

Golf van Iii Variant (1H5)
1.4; 1390 cm³; 44 kW; 60 hp; 1993-05–1995-07; TecDoc engine number: 4973

Jetta I (16)
1.3; 1272 cm³; 43 kW; 58 hp; 1982-08–1984-02; Built from: 1983-08
1.5; 1457 cm³; 51 kW; 70 hp; 1978-08–1984-02; Built from: 1979-08; Built up to: 1983-07
1.6 GLI; 1588 cm³; 81 kW; 110 hp; 1978-08–1982-07; Built from: 1980-08; Built up to: 1981-07
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1982-03–1984-02; Built from: 1982-08; Built up to: 1983-07
1.6; 1588 cm³; 55 kW; 75 hp; 1981-08–1983-07
1.6; 1595 cm³; 55 kW; 75 hp; 1982-08–1983-07

Jetta II (19E, 1G2, 165)
1.3 Cat; 1272 cm³; 40 kW; 55 hp; 1987-06–1991-12; Built up to: 1988-07
1.3; 1272 cm³; 40 kW; 55 hp; 1984-01–1987-06
1.3; 1272 cm³; 43 kW; 58 hp; 1984-01–1986-10
1.6 D; 1588 cm³; 40 kW; 54 hp; 1984-01–1991-10
1.6 TD; 1588 cm³; 44 kW; 60 hp; 1990-01–1991-10
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1984-01–1991-10; Built from: 1986-08; Built up to: 1989-07
1.6 TD; 1588 cm³; 59 kW; 80 hp; 1989-04–1991-10
1.6; 1595 cm³; 51 kW; 70 hp; 1986-10–1991-10
1.6; 1595 cm³; 53 kW; 72 hp; 1986-03–1991-10
1.6; 1595 cm³; 55 kW; 75 hp; 1984-01–1992-07
1.8 Cat; 1781 cm³; 66 kW; 90 hp; 1987-08–1991-10
1.8 Syncro; 1781 cm³; 62 kW; 84 hp; 1987-08–1988-07
1.8 Syncro; 1781 cm³; 66 kW; 90 hp; 1987-08–1988-12
1.8 Syncro; 1781 cm³; 72 kW; 98 hp; 1988-08–1991-07
1.8; 1781 cm³; 62 kW; 84 hp; 1986-08–1990-01
1.8; 1781 cm³; 66 kW; 90 hp; 1984-08–1991-10
1.8; 1781 cm³; 77 kW; 105 hp; 1985-01–1992-12
1.8; 1781 cm³; 79 kW; 107 hp; 1985-08–1987-10; Built from: 1987-08
1.8; 1781 cm³; 82 kW; 112 hp; 1984-01–1991-10

Passat B1 (32)
1.3; 1272 cm³; 40 kW; 55 hp; 1973-05–1980-07
1.3; 1272 cm³; 44 kW; 60 hp; 1978-01–1980-07
1.5; 1471 cm³; 55 kW; 75 hp; 1973-07–1975-12
1.5; 1471 cm³; 63 kW; 86 hp; 1973-05–1975-12
1.6; 1588 cm³; 53 kW; 72 hp; 1975-08–1980-07
1.6; 1588 cm³; 55 kW; 75 hp; 1979-08–1980-07
1.6; 1588 cm³; 61 kW; 83 hp; 1975-08–1980-11
1.6; 1588 cm³; 63 kW; 85 hp; 1975-08–1980-07; Built from: 1977-08

Passat B1 Variant (33)
1.3; 1272 cm³; 40 kW; 55 hp; 1973-05–1980-07; Built from: 1979-08
1.5; 1471 cm³; 55 kW; 75 hp; 1973-10–1975-08
1.5; 1471 cm³; 63 kW; 86 hp; 1973-10–1975-12
1.6 D; 1588 cm³; 40 kW; 54 hp; 1980-08–1981-07
1.6; 1588 cm³; 55 kW; 75 hp; 1976-02–1980-07; Built from: 1977-08
1.6; 1588 cm³; 63 kW; 85 hp; 1975-08–1980-07; Built from: 1977-08

Passat B2 (32B)
1.3; 1272 cm³; 44 kW; 60 hp; 1980-08–1986-07; Built up to: 1984-07
1.3; 1297 cm³; 44 kW; 60 hp; 1980-08–1986-07
1.6 D; 1588 cm³; 40 kW; 54 hp; 1980-08–1988-03; Built up to: 1984-07
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1982-04–1988-03; Built from: 1984-08
1.6 TD; 1588 cm³; 59 kW; 80 hp; 1988-08–1989-07
1.6; 1588 cm³; 55 kW; 75 hp; 1979-09–1988-03; Built up to: 1984-07
1.6; 1588 cm³; 63 kW; 85 hp; 1981-01–1983-02
1.6; 1595 cm³; 51 kW; 70 hp; 1986-08–1988-03
1.6; 1595 cm³; 53 kW; 72 hp; 1986-02–1988-03; Built from: 1986-08
1.6; 1595 cm³; 55 kW; 75 hp; 1980-08–1988-03; Built from: 1983-08; Built up to: 1984-12
1.8; 1781 cm³; 64 kW; 87 hp; 1986-05–1988-03
1.8; 1781 cm³; 66 kW; 90 hp; 1983-01–1988-03

Passat B2 Variant (33B)
1.3; 1272 cm³; 40 kW; 55 hp; 1980-08–1983-07; Built up to: 1981-07
1.3; 1272 cm³; 44 kW; 60 hp; 1980-08–1986-07; Built up to: 1984-07
1.3; 1297 cm³; 44 kW; 60 hp; 1980-08–1986-07; Built from: 1983-08
1.6 D; 1588 cm³; 40 kW; 54 hp; 1980-08–1988-03; Built up to: 1984-07
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1982-04–1988-03
1.6; 1588 cm³; 55 kW; 75 hp; 1980-08–1983-07; Built up to: 1981-07
1.6; 1588 cm³; 63 kW; 85 hp; 1981-01–1983-02
1.6; 1595 cm³; 51 kW; 70 hp; 1986-08–1988-03
1.6; 1595 cm³; 53 kW; 72 hp; 1986-02–1988-03; Built from: 1986-08
1.6; 1595 cm³; 55 kW; 75 hp; 1983-08–1988-03; Built from: 1983-08
1.8; 1781 cm³; 64 kW; 87 hp; 1986-05–1988-03
1.8; 1781 cm³; 66 kW; 90 hp; 1983-01–1988-03; Built from: 1983-08

Passat B2 saloon (32B)
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1985-01–1988-03
1.6; 1595 cm³; 51 kW; 70 hp; 1986-08–1988-03
1.6; 1595 cm³; 53 kW; 72 hp; 1985-01–1988-03; Built from: 1986-08
1.6; 1595 cm³; 55 kW; 75 hp; 1984-08–1988-03
1.8; 1781 cm³; 64 kW; 87 hp; 1986-05–1988-03
1.8; 1781 cm³; 66 kW; 90 hp; 1985-01–1988-03

Polo Iii Classic (6V2)
110 1.9 TDI; 1896 cm³; 81 kW; 110 hp; 1998-06–2002-01; PR code: 1LM
54 1.4; 1390 cm³; 40 kW; 54 hp; 1998-01–1999-08; PR code: 1LM
57 1.7 SDI; 1715 cm³; 42 kW; 57 hp; 1997-07–2001-09; PR code: 1LM
60 1.4; 1390 cm³; 44 kW; 60 hp; 1995-12–2001-09; PR code: 1LM
64 1,9 D; 1896 cm³; 47 kW; 64 hp; 1996-01–1996-10; Built up to: 1996-04
64 1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1995-12–1999-08; Built up to: 1996-04
68 1.9 SDI; 1896 cm³; 50 kW; 68 hp; 1999-08–2002-01; PR code: 1LM
75 1.6; 1595 cm³; 55 kW; 75 hp; 1995-11–1997-09; PR code: 1LM
75 1.6; 1598 cm³; 55 kW; 75 hp; 1995-11–2001-09; PR code: 1LM
90 1.8; 1781 cm³; 66 kW; 90 hp; 1997-01–2001-09; PR code: 1LM
90 1.9 TDI; 1896 cm³; 66 kW; 90 hp; 1996-09–2001-09; PR code: 1LM

Polo van van/estate (6V5)
1.4; 1390 cm³; 44 kW; 60 hp; 1997-08–1999-12; PR code: 1LM
1.6; 1598 cm³; 55 kW; 75 hp; 1997-09–1998-12; PR code: 1LM

Polo Variant (6V5)
1.4; 1390 cm³; 40 kW; 54 hp; 1998-01–1999-08; PR code: 1LM
1.4; 1390 cm³; 44 kW; 60 hp; 1997-05–2001-09; PR code: 1LM
1.6; 1598 cm³; 55 kW; 75 hp; 1997-05–2001-09; PR code: 1LM
1.7 SDI; 1715 cm³; 42 kW; 57 hp; 1997-08–2001-09; PR code: 1LM
1.8; 1781 cm³; 66 kW; 90 hp; 1997-05–2001-09; PR code: 1LM
1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1997-06–2001-09; PR code: 1LM
1.9 SDI; 1896 cm³; 50 kW; 68 hp; 1999-08–2001-09; PR code: 1LM
1.9 TDI; 1896 cm³; 66 kW; 90 hp; 1997-05–2001-09; PR code: 1LM
1.9 TDI; 1896 cm³; 81 kW; 110 hp; 1998-06–2001-09

Santana (32B)
1.6 D; 1588 cm³; 40 kW; 54 hp; 1981-08–1984-12; Built from: 1982-08
1.6 TD; 1588 cm³; 51 kW; 70 hp; 1981-12–1984-12
1.6; 1588 cm³; 55 kW; 75 hp; 1981-08–1984-12; Built up to: 1983-07
1.6; 1588 cm³; 63 kW; 85 hp; 1981-08–1982-12
1.6; 1595 cm³; 55 kW; 75 hp; 1981-08–1984-12; Built from: 1983-08
1.8; 1781 cm³; 66 kW; 90 hp; 1983-01–1984-12

Scirocco (53)
1.1; 1093 cm³; 37 kW; 50 hp; 1974-04–1979-07; Built from: 1975-08; Built up to: 1978-07
1.5; 1457 cm³; 51 kW; 70 hp; 1977-08–1980-07; Built from: 1978-08
1.5; 1471 cm³; 51 kW; 70 hp; 1974-02–1975-12
1.5; 1471 cm³; 55 kW; 75 hp; 1974-02–1975-08
1.5; 1471 cm³; 63 kW; 86 hp; 1974-02–1977-12
1.6; 1588 cm³; 51 kW; 70 hp; 1975-08–1977-07
1.6; 1588 cm³; 55 kW; 75 hp; 1975-08–1979-07
1.6; 1588 cm³; 63 kW; 85 hp; 1975-08–1980-07

Scirocco (53B)
1.3; 1272 cm³; 40 kW; 55 hp; 1983-08–1984-07
1.5; 1457 cm³; 51 kW; 70 hp; 1980-08–1983-12; Built up to: 1983-06
1.6; 1595 cm³; 51 kW; 70 hp; 1983-08–1984-07
1.6; 1595 cm³; 53 kW; 72 hp; 1986-04–1990-07
1.6; 1595 cm³; 55 kW; 75 hp; 1983-01–1989-12

Vento (1H2)
1.4; 1390 cm³; 40 kW; 55 hp; 1991-11–1998-09
1.4; 1390 cm³; 44 kW; 60 hp; 1991-11–1998-09
1.6; 1598 cm³; 55 kW; 75 hp; 1992-09–1998-09; Built up to: 1997-12
1.8; 1781 cm³; 55 kW; 75 hp; 1991-11–1998-09
1.8; 1781 cm³; 66 kW; 90 hp; 1991-11–1998-09; PR code: 1LK; PR code: 1LM
1.9 D; 1896 cm³; 48 kW; 65 hp; 1991-11–1998-09
1.9 SDI; 1896 cm³; 47 kW; 64 hp; 1997-04–1998-09; Built up to: 1997-07
1.9 TD; 1896 cm³; 55 kW; 75 hp; 1991-11–1998-09; Built up to: 1996-04

Reference numbers

DELPHI: BG116, BG2116, BG2116C

TEXTAR: 92010600, 92010603, 98200010601

TRW: DF1516, RPDI00480

VW: 171 615 301, 171 615 301 V, 175615301, 321615301, 325 615 301 2, 839615301, ZBA615301
