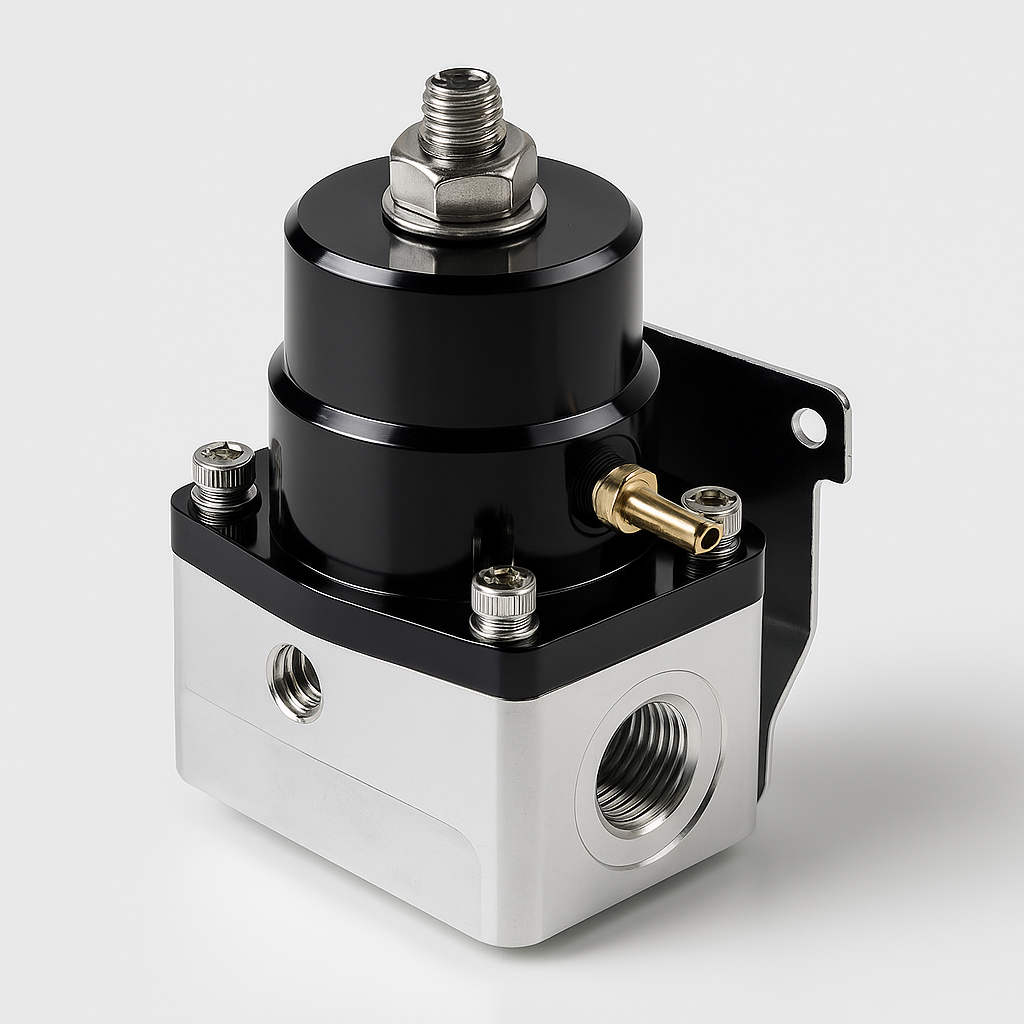

Fuel pressure regulator 1:1 – Dual AN6

Stabilize and fine-tune fuel flow. This linear 1:1 fuel pressure regulator has two AN6 inputs and AN6 return underneath, making it easy to connect in series in multi-feed systems. A 1/8" NPT port accommodates the included fuel pressure gauge, and pressure is easily adjusted via the top screw.

Highlights

• Dual AN6 in for flexible feeding
• AN6 return located below the regulator
• 1:1 linear pressure increase (map reference)
• Up to 6 bar adjustable fuel pressure
• Pressure gauge included (1/8“ NPT)
• Simple, precise adjustment via top screw

Specifications

• In: 2 × AN6
• Out/return: 1 × AN6 (underside)
• Measuring port: 1/8” NPT
• Adjustment range: up to 6 bar
• Type: Linear 1:1 (Aromotive-style)

Perfect for upgraded fuel systems where stable and repeatable pressure is crucial – on the street, track, or when mapping.
